Motherboard Asus 90MB1GL0-M0ECY0 H610 LGA 1700

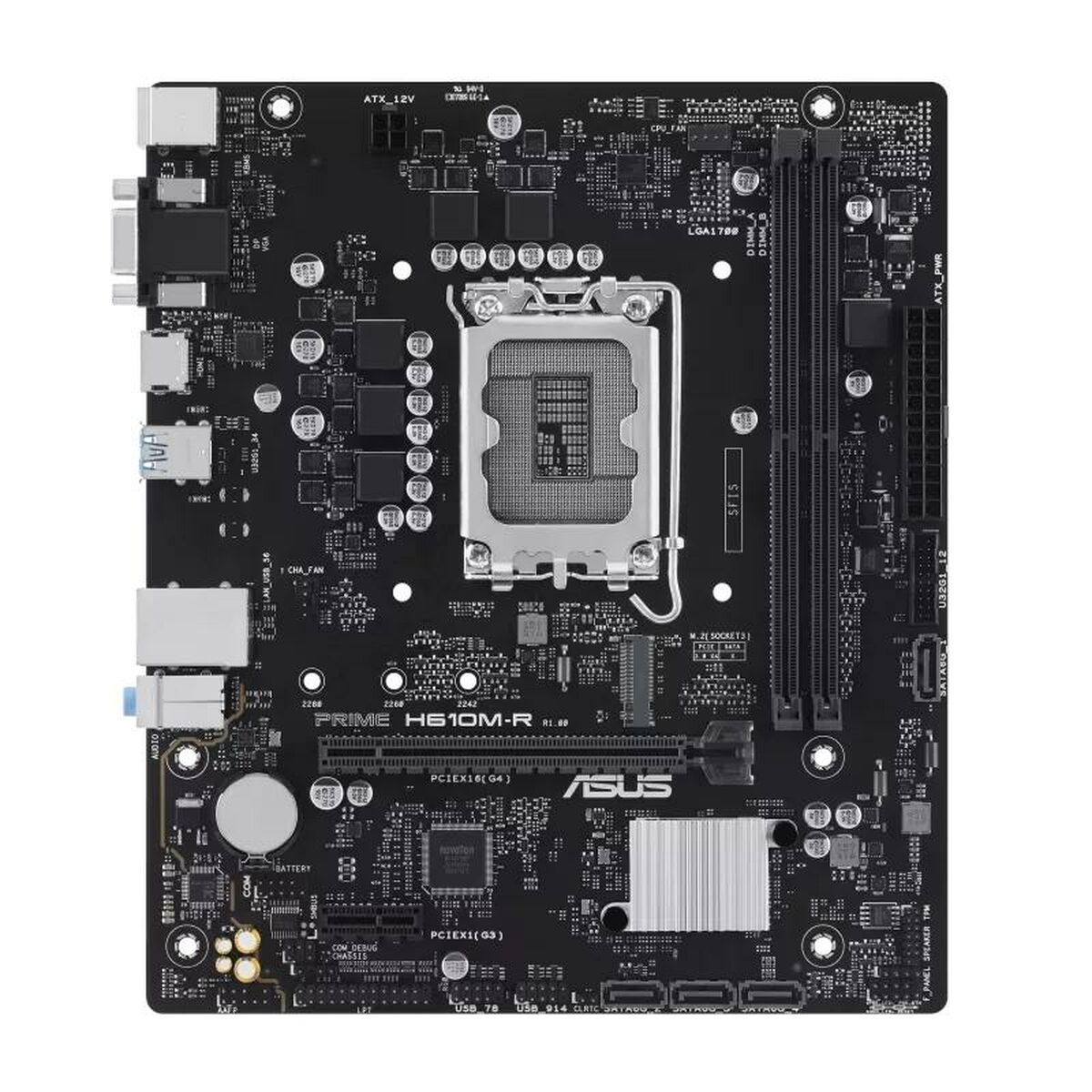

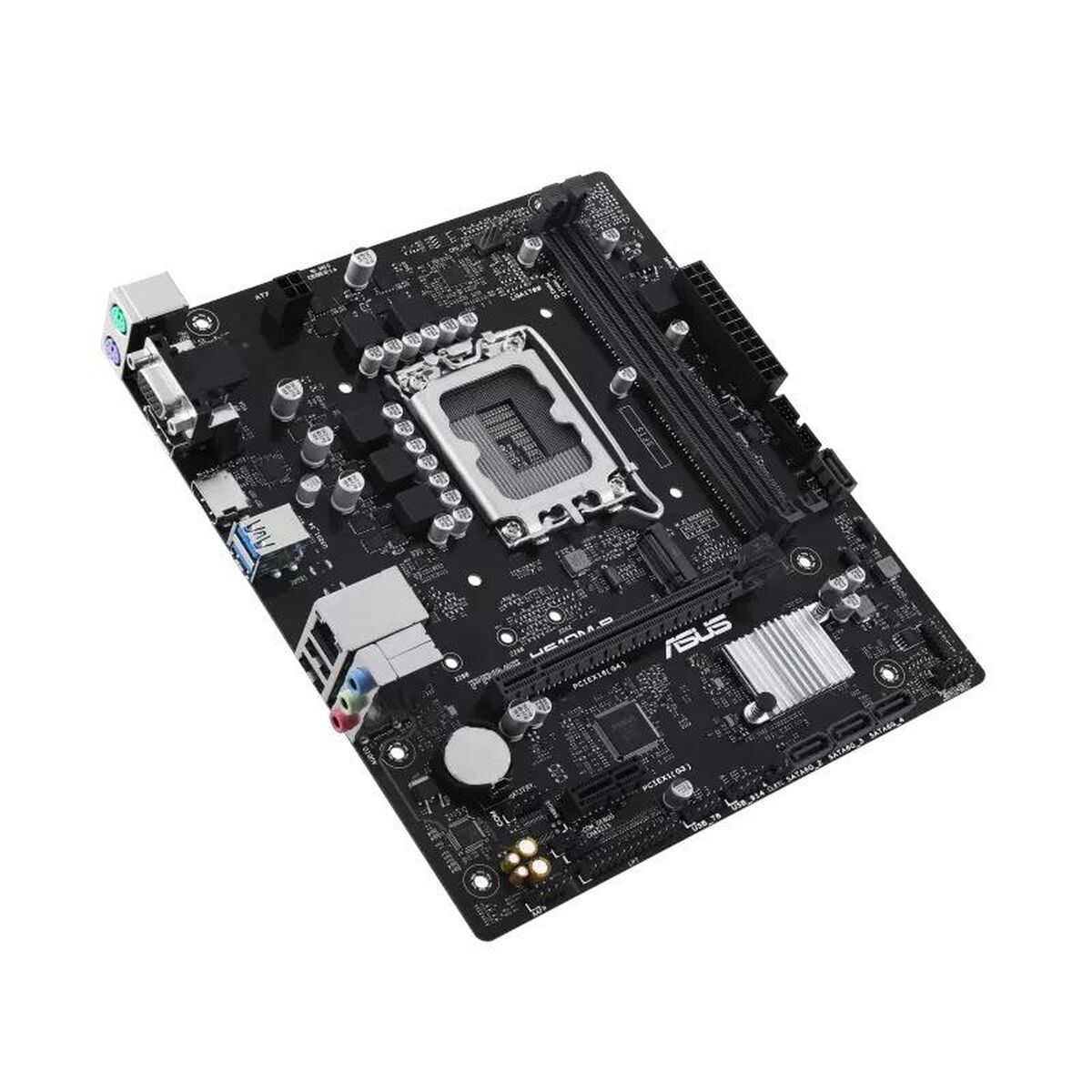

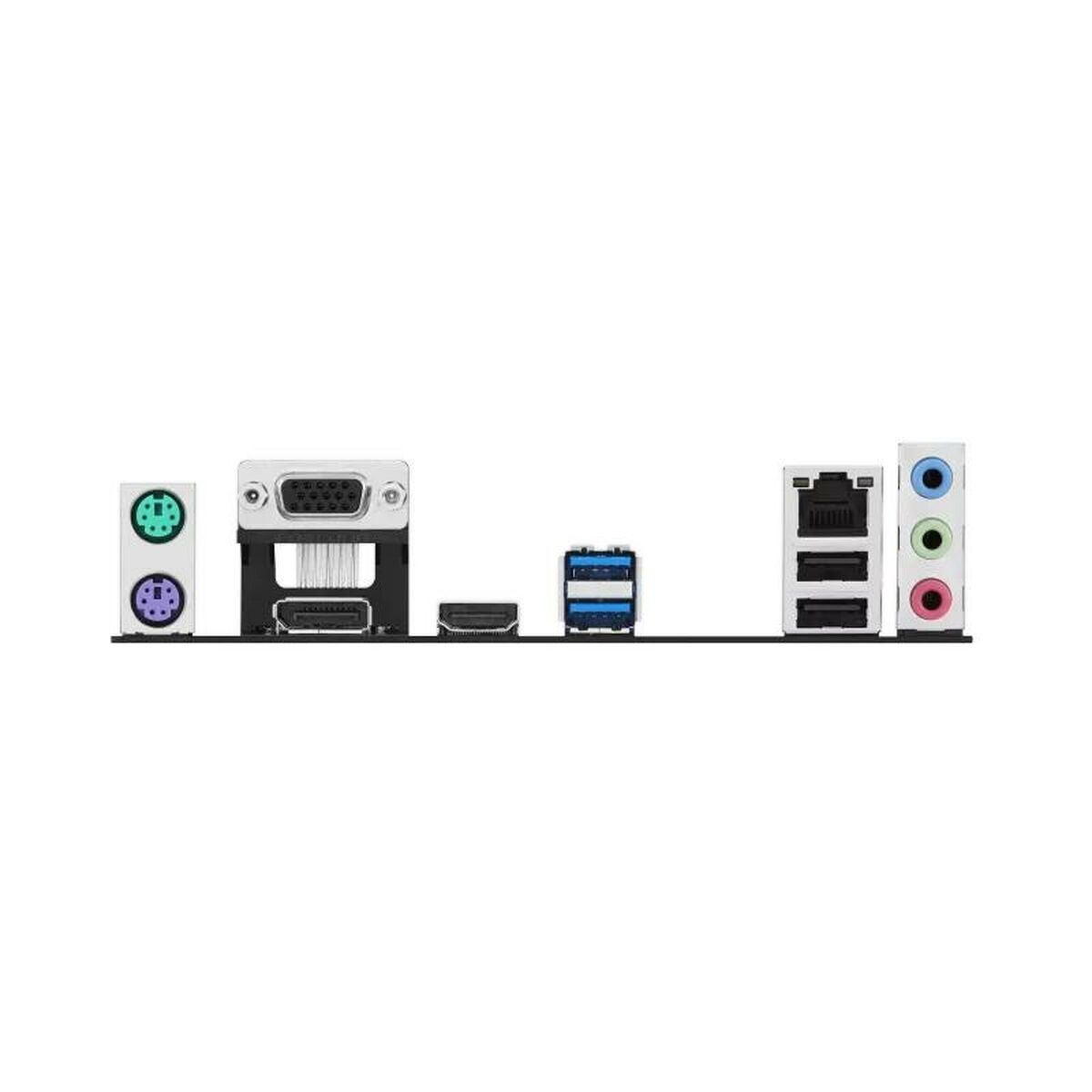

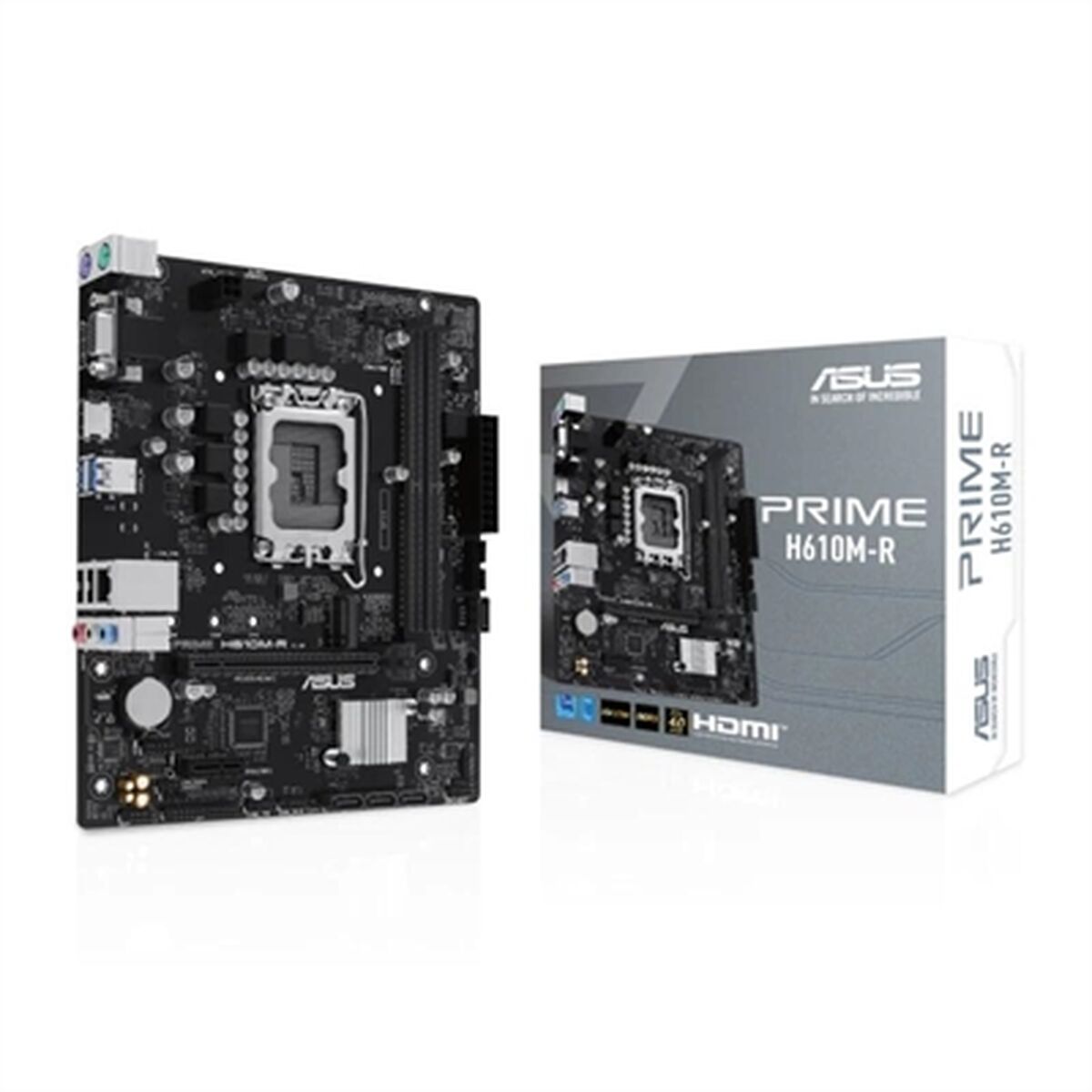

The Asus 90MB1GL0-M0ECY0 motherboard is a robust and versatile solution within the MicroATX (mATX) motherboard segment, designed for systems with 14th, 13th, and 12th generation Intel processors thanks to its LGA 1700 socket and support for Intel Core, Pentium Gold, and Celeron CPUs with a maximum power consumption of up to 65 W. Equipped with the Intel H610 chipset , this board supports high-speed DDR5 memory, allowing up to 96 GB at frequencies from 4800 to 5600 MHz in dual-channel architecture, compatible with Intel Extreme Memory Profile (XMP) to optimize RAM performance. For expansion and connectivity, it offers a PCIe 4.0 x16 slot for a graphics card and a PCIe 3.0 x1 slot for peripherals, ensuring compatibility with a wide range of components. The integrated graphics output includes a DisplayPort, VGA, and HDMI 2.1 port, supporting 4K resolution at 60 Hz depending on the processor’s capabilities, ideal for multimedia and professional setups. In terms of connectivity and storage, it features an M.2 slot compatible with PCIe 3.0 x4 modules (2242/2260/2280) and four 6 Gb/s SATA ports for SSDs and HDDs, covering various internal storage needs. The rear panel is equipped with USB 3.2 Gen 1 (5G) and USB 2.0 ports, PS/2 connectors for keyboard and mouse, a Realtek Gigabit Ethernet interface, and 7.1 audio outputs via the Realtek codec with shielding and high-quality capacitors, ensuring clear signals and advanced surround sound configurations when using the front HD audio module. Internally, it also includes multiple fan connectors, a 24-pin main power connector, a 4-pin +12 V connector, as well as ports for front panel, speakers, TPM, and other control and diagnostic elements, facilitating full integration in any compatible chassis. Its compatibility targets 64-bit Windows 10 and Windows 11 operating systems, covering the most common environment for professional or home PCs. This motherboard stands out for its balance between modern features and compact form factor, adapting to setups that require efficient assembly without sacrificing advanced connectivity and support for the latest processor and memory technologies. In short, the Asus 90MB1GL0-M0ECY0 is a reliable platform for building systems with current Intel technologies, combining performance, scalability, and a complete range of connections in an mATX form factor. Type: Motherboard DDR4 DDR5 ATX UEFI Connections: USB VGA PS/2 RJ45 Jack 3.5 mm SATA PCI Express (x16) x 1 PCI Express 3.0 (x1) x 1 COM x 1 24 PIN x 1 PCI Express 3.0 Jack 3.5 mm x 3 HDMI 2.1 M.2 DVI DVI-D x 1 USB 3.2 x 1 USB 2.0 x 2 PS/2 x 2 Audio Output TPM M.2 x 1 DisplayPort HDMI USB 2.0 USB 3.2 HDMI x 1 2 x USB 2.0 Microphone Ethernet LAN SATA x 4 DIMM x 2 DIMM DisplayPort x 1 RJ45 x 1 Memory Type: DDR4 SDRAM DDR5 Channels: 7.1 2 Channels Number of memory slots: 2 Compatible: Windows 10 Intel Celeron Intel Core i5 Intel Core i7 Intel Core i3 Windows 11 Intel Pentium Gold Intel Core i9 HDD/SSD PC Otros: HDMI USB 2.0 VGA Sub-D LAN Gigabit USB 3.2 Processor: Intel® Speed: 2133 MHz 2400 MHz 2933 MHz 3200 MHz 2666 MHz 3000 MHz 2800 mhz Includes: Controllers SATA Resolution (px): 3840 x 2160 px Maximum RAM Memory: 64 GB Chipset: INTEL H610 H610 USB 2.0: Yes DisplayPort: Yes Width: 226 mm Ethernet LAN: Yes Built-in microphone: Yes Form factor: mATX MicroATX Socket: LGA 1700 Language: English Interface: Gigabit Ethernet Memory: 128 MB Speakers: 7.1 Not included: WiFi Height: 50 cm Processor Family: Intel
