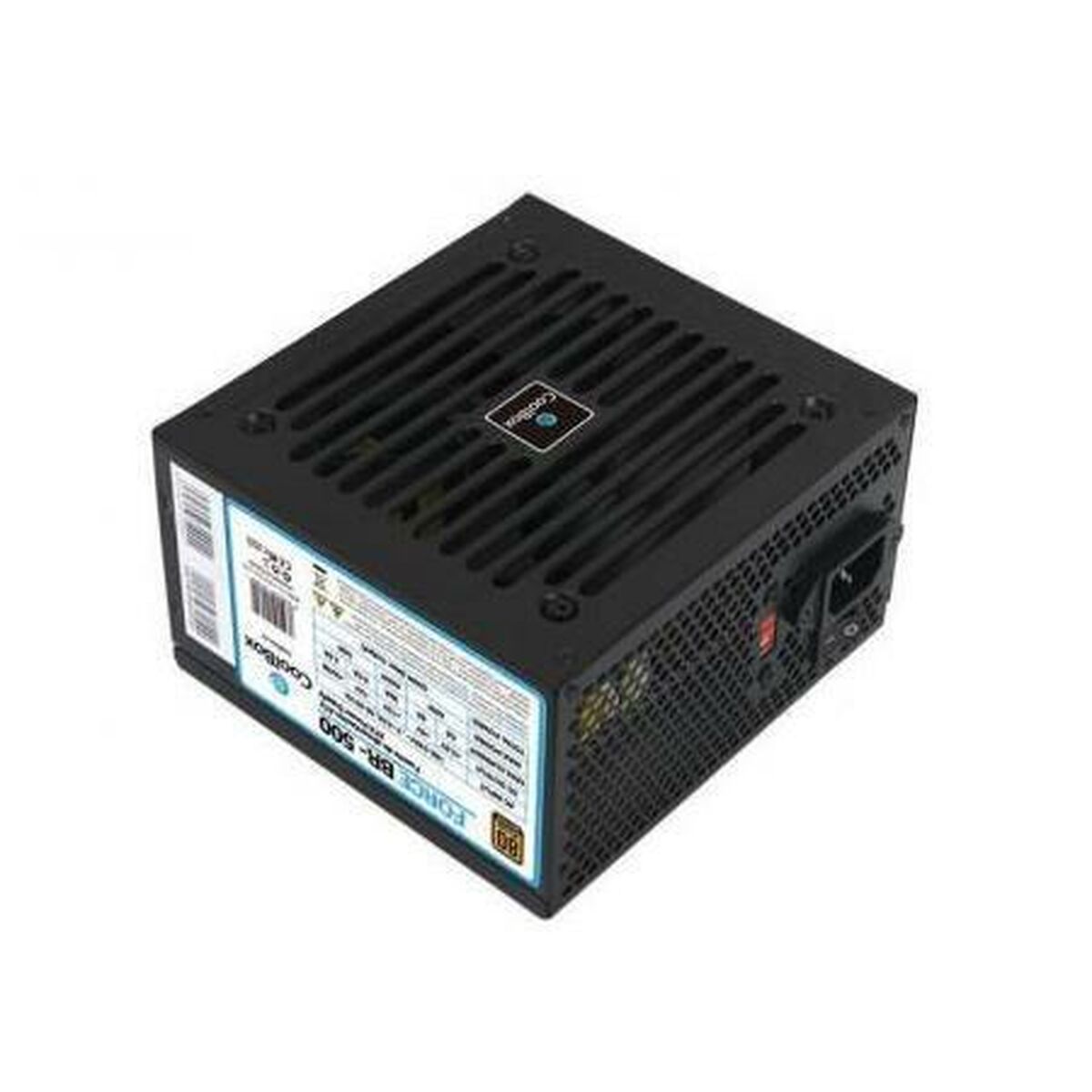

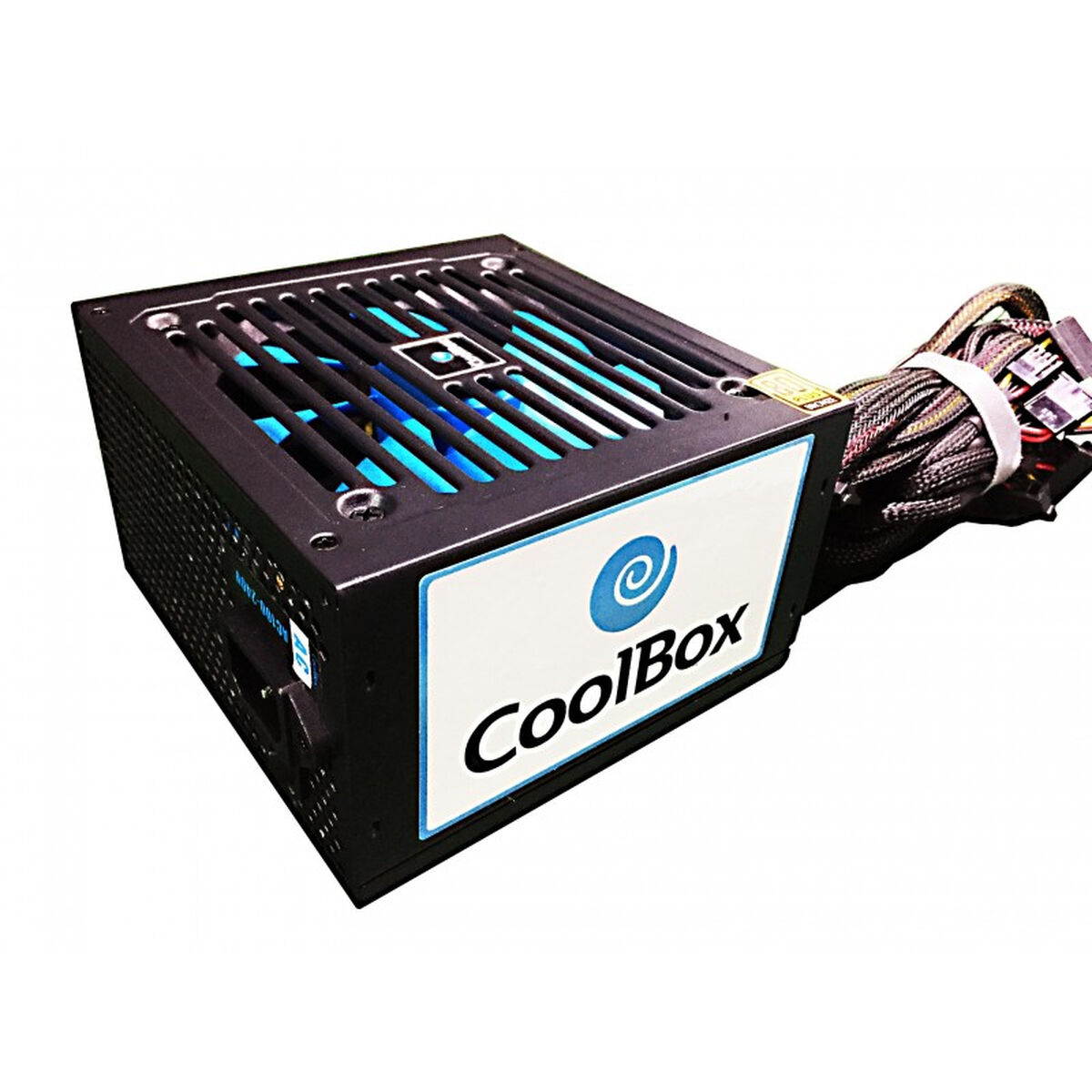

Power supply CoolBox Force BR-500 ATX 80 Plus Bronze 500 W

Form factor: ATX Power: 500 W Ventilator: Ø 12 cm 1 Connections: ATX 24 pin x 1 12V 8 pin x 1 SATA x 4 PCIe 8 PIN x 1 24 PIN x 1 PCI Express Molex 4-pin x 4 Certificate: 80 Plus Bronze Product with plug: Yes Type of plug: Plug EU Type: Power supply Colour: Black Voltage: 100-240 V 100 - 240 V Frequency: 50-60 Hz 50 - 60 Hz Version ATX: 2.31 Characteristics: On/off interrupter Power supply: CA cable Connectors: Diskette unit SATA x 4 Compatible: ATX Amperage: 2 A 6 A Includes: User manual CoolBox Force BR-500. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC/server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Package type: Box Total power: 500 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Maximum input current (@110V): 7 A Maximum input current (@220V): 3.5 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 60 W Combined power (+12V): 432 W Combined power (+5V): 60 W Combined power (-12V): 16 W Combined power (+5Vsb): 16 W Max output current (+3.3V): 6 A Max output current (+12V): 36 A Max output current (+5V): 8 A Max output current (-12V): 0.5 A Max output current (+5Vsb): 2 A Efficiency: 85% Power protection features: Over power,Over voltage,Short circuit,Under voltage Motherboard power connector: 20+4 pin ATX Peripheral (Molex) power connectors (4-pin): 4 Number of SATA power connectors: 4 PCI Express power connectors (6+2 pin): 1 CPU power connector (4+4 pin): Y Floppy drive power connector: 1 Floppy disk drive connector: Y PCI Express connector: Y Purpose: PC/server Power supply unit (PSU) form factor: ATX 80 PLUS certification: 80 PLUS Bronze ATX version: 2.31 RoHS compliance: Y Certification: CE, WEEE Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top On/off switch: Y Cables included: AC Package type: Box Manual: Y
Fabrikant: CoolBox
Beschikbaarheid:: Niet op voorraad
Artikelnummer voorraad referentie: S55094307
€30,79 excl. BTW
If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Power supply CoolBox Force BR-500 ATX 80 Plus Bronze 500 W at an unbeatable price.

  • Form factor: ATX
  • Power: 500 W
  • Ventilator:
    • Ø 12 cm
    • 1
  • Connections:
    • ATX 24 pin x 1
    • 12V 8 pin x 1
    • SATA x 4
    • PCIe 8 PIN x 1
    • 24 PIN x 1
    • PCI Express
    • Molex 4-pin x 4
  • Certificate: 80 Plus Bronze
  • Product with plug: Yes
  • Type of plug: Plug EU
  • Type: Power supply
  • Colour: Black
  • Voltage:
    • 100-240 V
    • 100 - 240 V
  • Frequency:
    • 50-60 Hz
    • 50 - 60 Hz
  • Version ATX: 2.31
  • Characteristics: On/off interrupter
  • Power supply: CA cable
  • Connectors:
    • Diskette unit
    • SATA x 4
  • Compatible: ATX
  • Amperage:
    • 2 A
    • 6 A
  • Includes: User manual

CoolBox Force BR-500. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC/server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Package type: Box


  • Total power: 500 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum input current (@110V): 7 A
  • Maximum input current (@220V): 3.5 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 60 W
  • Combined power (+12V): 432 W
  • Combined power (+5V): 60 W
  • Combined power (-12V): 16 W
  • Combined power (+5Vsb): 16 W
  • Max output current (+3.3V): 6 A
  • Max output current (+12V): 36 A
  • Max output current (+5V): 8 A
  • Max output current (-12V): 0.5 A
  • Max output current (+5Vsb): 2 A
  • Efficiency: 85%
  • Power protection features: Over power,Over voltage,Short circuit,Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Peripheral (Molex) power connectors (4-pin): 4
  • Number of SATA power connectors: 4
  • PCI Express power connectors (6+2 pin): 1
  • CPU power connector (4+4 pin): Y
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Y
  • PCI Express connector: Y
  • Purpose: PC/server
  • Power supply unit (PSU) form factor: ATX
  • 80 PLUS certification: 80 PLUS Bronze
  • ATX version: 2.31
  • RoHS compliance: Y
  • Certification: CE, WEEE
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • On/off switch: Y
  • Cables included: AC
  • Package type: Box
  • Manual: Y
