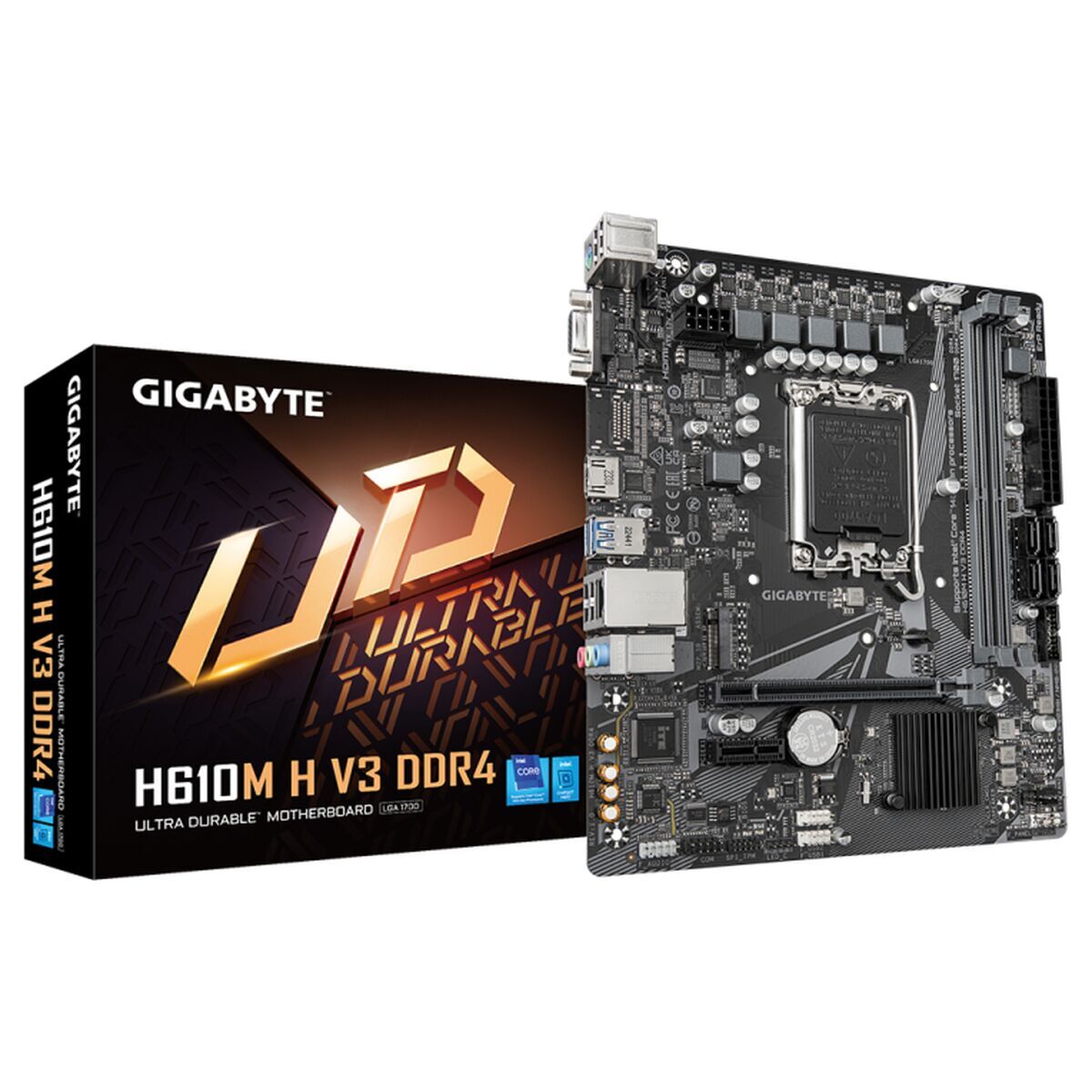

Motherboard Gigabyte H610M H V3 DDR4 LGA 1700

The motherboard Gigabyte H610M H V3 DDR4 is designed for systems based on latest-generation Intel processors, integrating the Intel H610 Express chipset and the LGA 1700 socket , compatible with Intel Celeron, Pentium Gold and Intel Core i3, i5, i7 and i9 CPUs to provide a solid base for home and professional PCs. Its MicroATX (mATX) form factor of approximately 23 cm / 230 mm allows installation in compact cases while maintaining good expansion capacity, with one PCI Express x16 slot for a dedicated graphics card and an additional PCI Express x1 slot for expansion cards. For memory it includes 2 DDR4 DIMM slots compatible with modules up to 64 GB , supporting common speeds such as 2133, 2400, 2666, 2933, 3000 and 3200 MHz , suitable for smooth use with Windows 10 and Windows 11 . For storage it offers SATA connectors for HDD/SSD and an M.2 slot, allowing you to combine traditional drives and high-speed NVMe according to system needs. Rear connectivity includes HDMI, DisplayPort and DVI-D with a maximum resolution of 4096 x 2304 px , taking advantage of the processor’s integrated Intel HD Graphics, plus USB 3.2 and USB 2.0 ports, a PS/2 connector for legacy peripherals, RJ45 Gigabit Ethernet for wired network and an RS-232 serial port useful in professional or industrial environments. For audio it integrates the Realtek ALC897 codec, delivering high-definition 7.1-channel sound via 3.5 mm jack connectors, while HDCP support ensures compatibility with protected content on digital video outputs. The design includes internal headers for front USB 2.0 and USB 3.2 , a main 24-pin ATX power connector and auxiliary 8-pin CPU power connector, as well as support for TPM and UEFI , simplifying installation of modern operating systems and meeting current security requirements it also features headers for LED strips , allowing basic lighting in custom builds. Overall, this Gigabyte H610M H V3 DDR4 motherboard provides a compact, up-to-date and well-balanced platform for general-purpose and professional Intel desktop PCs. Type: Motherboard PCI Express 3.0 ATX UEFI Connections: HDMI USB 2.0 RJ45 USB 3.2 Ethernet LAN VGA Jack 3.5 mm DisplayPort PCI Express (x1) x 1 PCI Express (x16) x 1 24 PIN x 1 DVI-D x 1 8-pin USB 3.2 x 1 USB 2.0 x 2 RS-232 x 1 Audio Output TPM M.2 x 1 M.2 SATA PS/2 USB HDMI x 1 DisplayPort x 2 2 x USB 2.0 Microphone USB 2.0 x 4 SATA x 4 PS/2 x 1 Jack 3.5 mm x 3 DIMM x 2 DIMM RJ45 x 1 Form factor: mATX MicroATX Chipset: H610 INTEL H610 EXPRESS INTEL H610 Characteristics: USB Speed: 2133 MHz 2400 MHz 2933 MHz 3200 MHz 2666 MHz 3000 MHz Number of memory slots: 2 Width: 230 mm 23 cm Memory Type: DDR4 SDRAM DDR4 Channels: 7.1 2 Channels Power supply: ATX Compatible: Windows 10 Intel Celeron Intel Core i5 Intel Core i7 Intel Core i3 HDCP Windows 11 LED strips Intel Pentium Gold Intel Core i9 DDR4-SDRAM HDD/SSD PC Resolution (px): 4096 x 2304 px USB 2.0: 4 Height: 3,5 cm Colour: Black Model: Serie 1 Platform: Windows Interface: Gigabit Ethernet Battery: CR2032 Memory: 128 MB Batteries included: Yes Speakers: 7.1 Graphic Driver: Intel HD Graphics Connectivity: Ethernet LAN Not included: WiFi Includes: SATA Resolution: 4096 x 2304 px Sound: Realtek ALC897 Socket: LGA 1700 Processor Family: Intel Maximum RAM Memory: 64 GB
