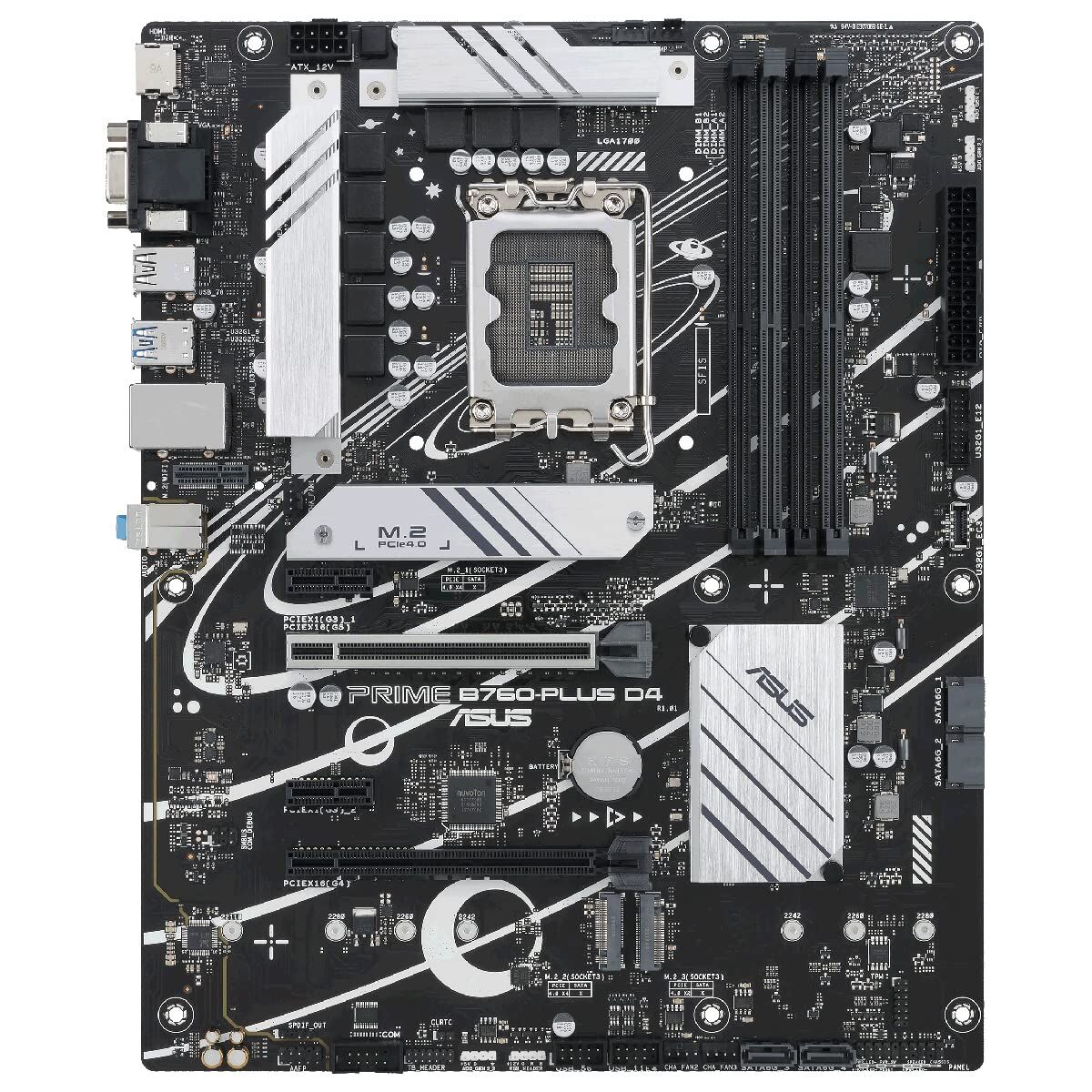

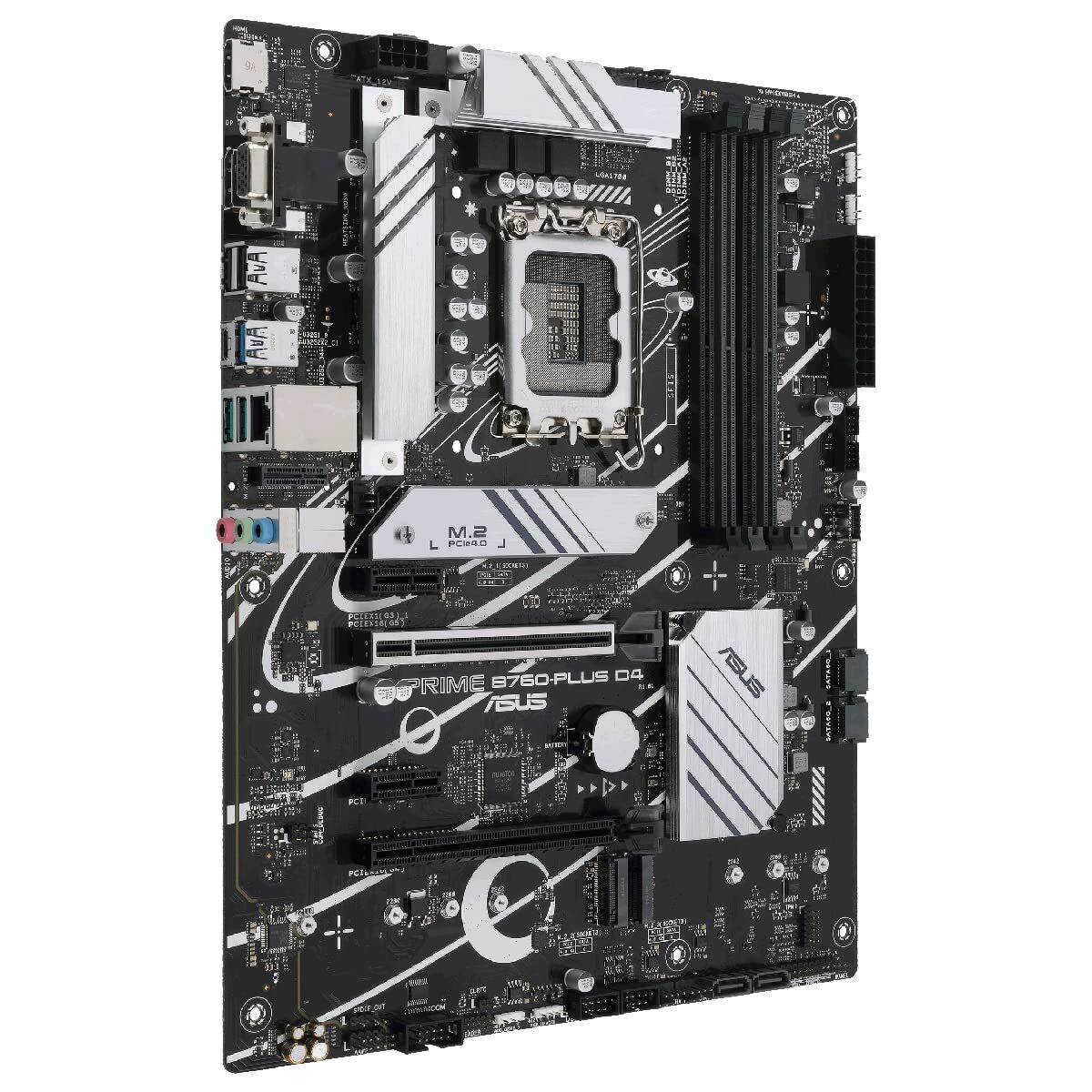

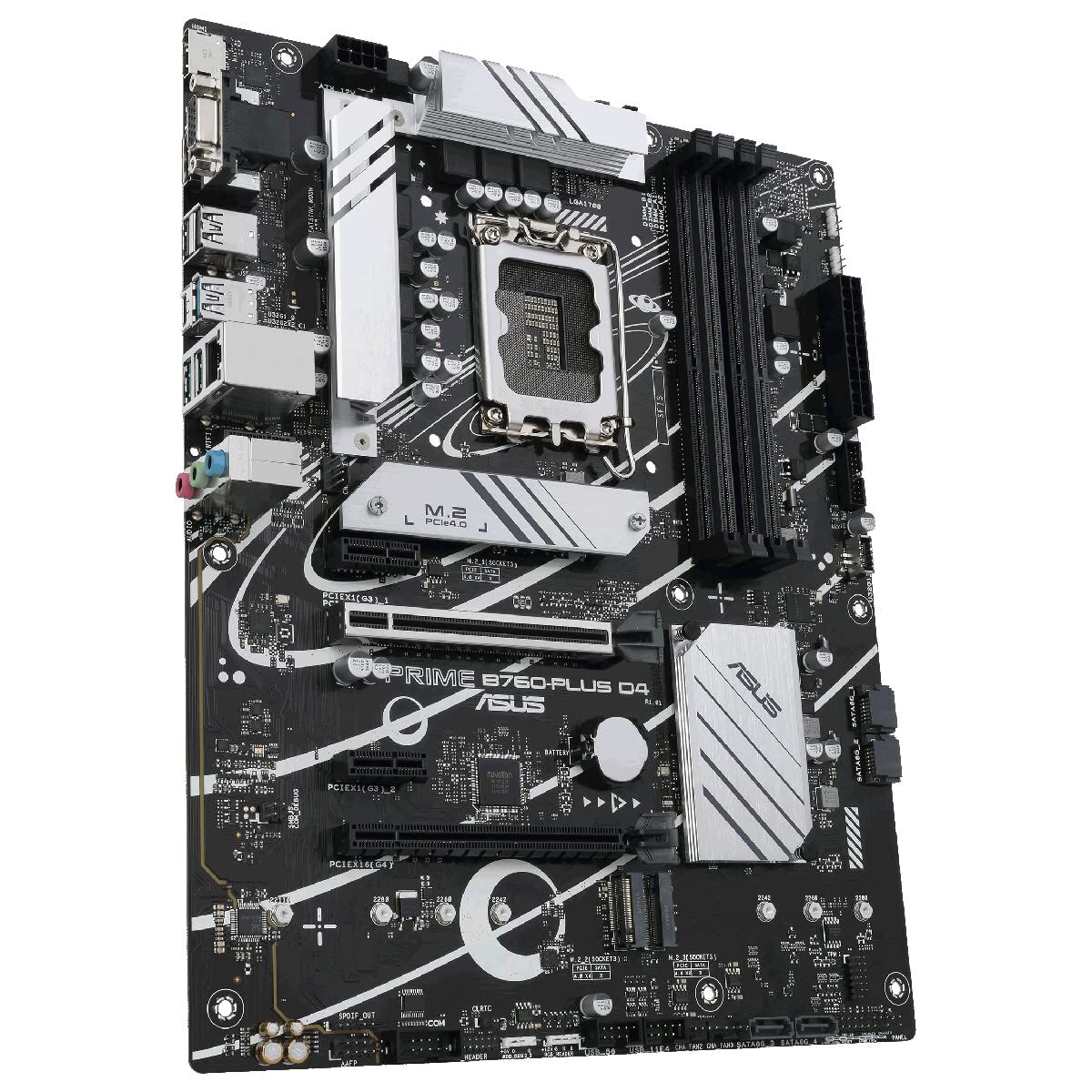

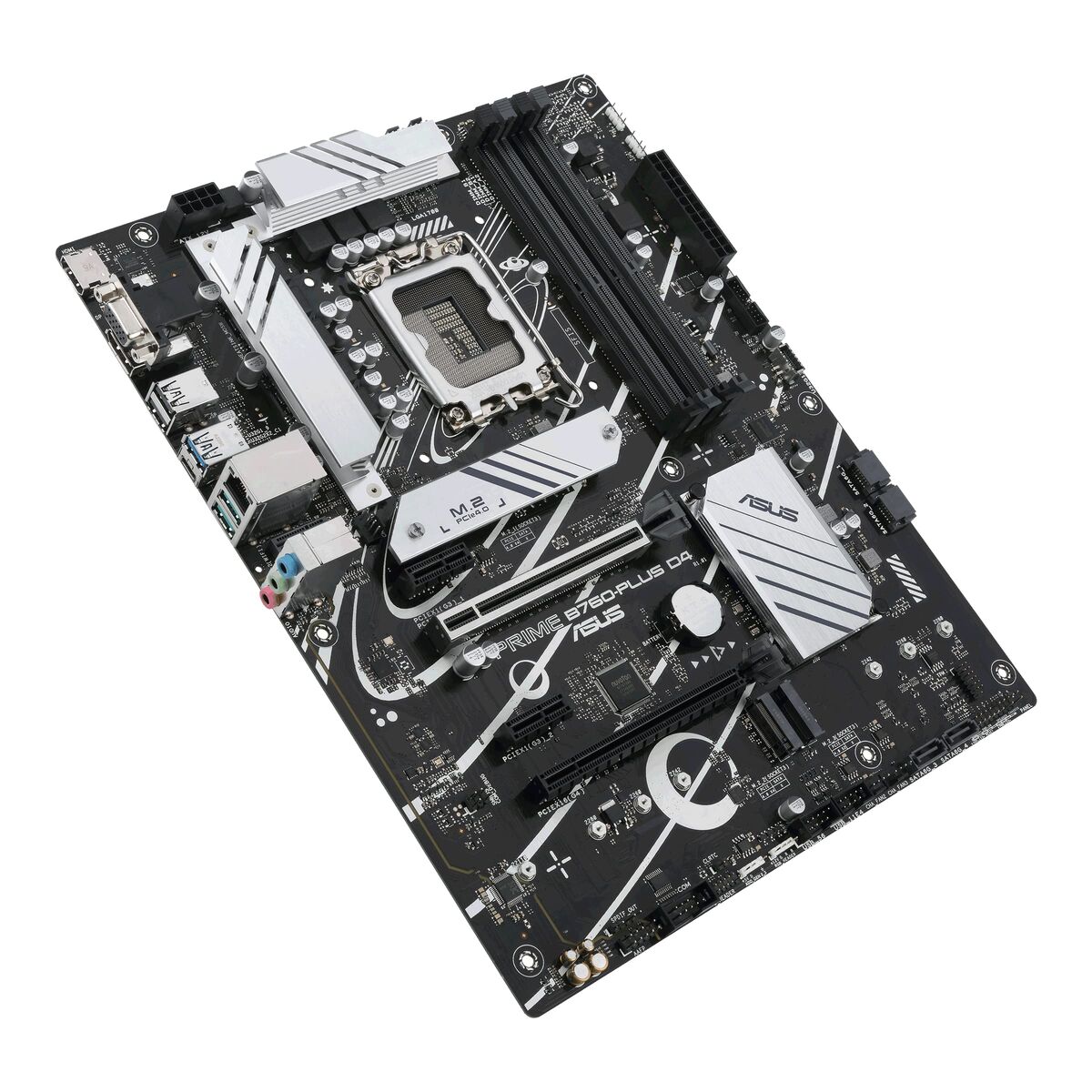

Motherboard Asus PRIME B760-PLUS D4 LGA 1700

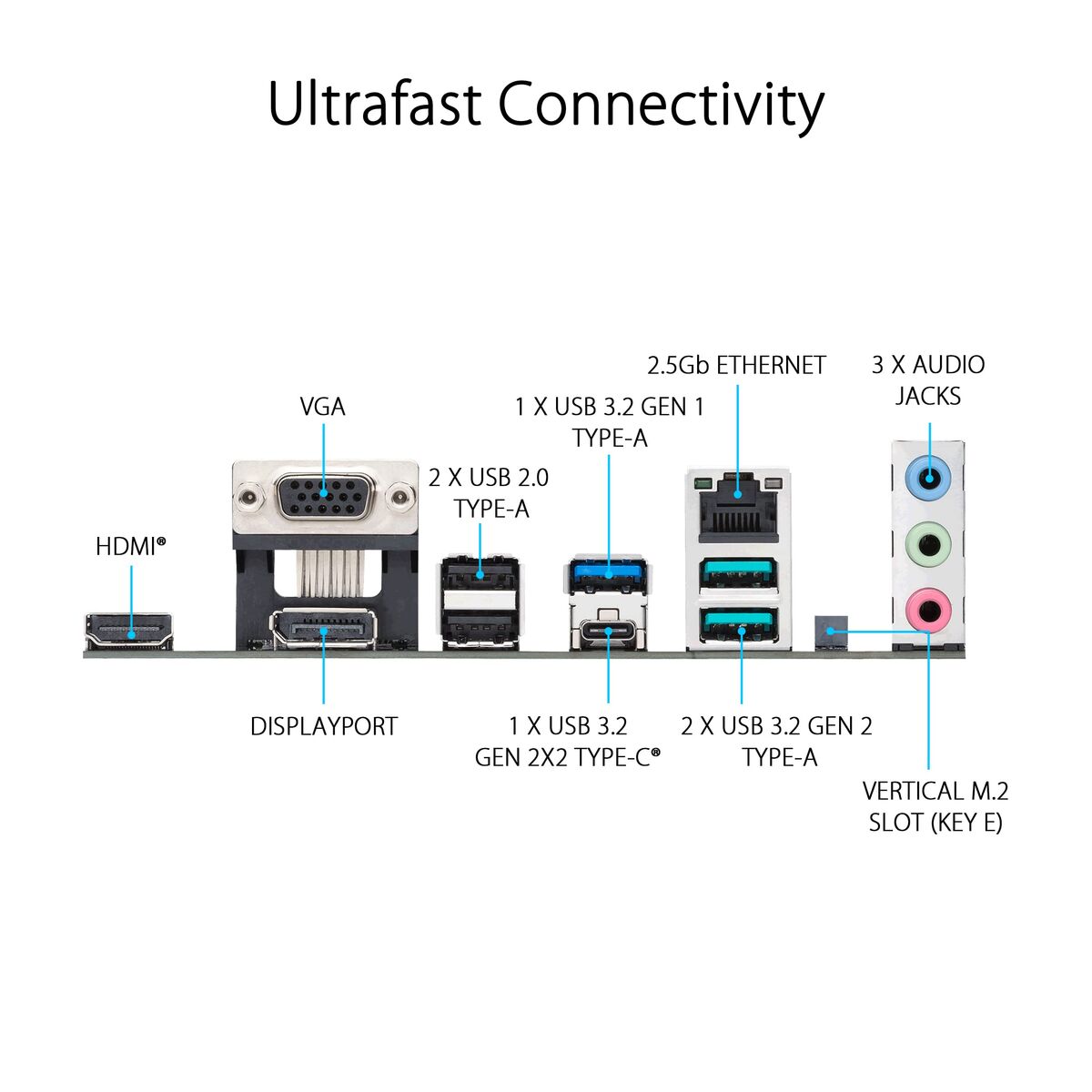

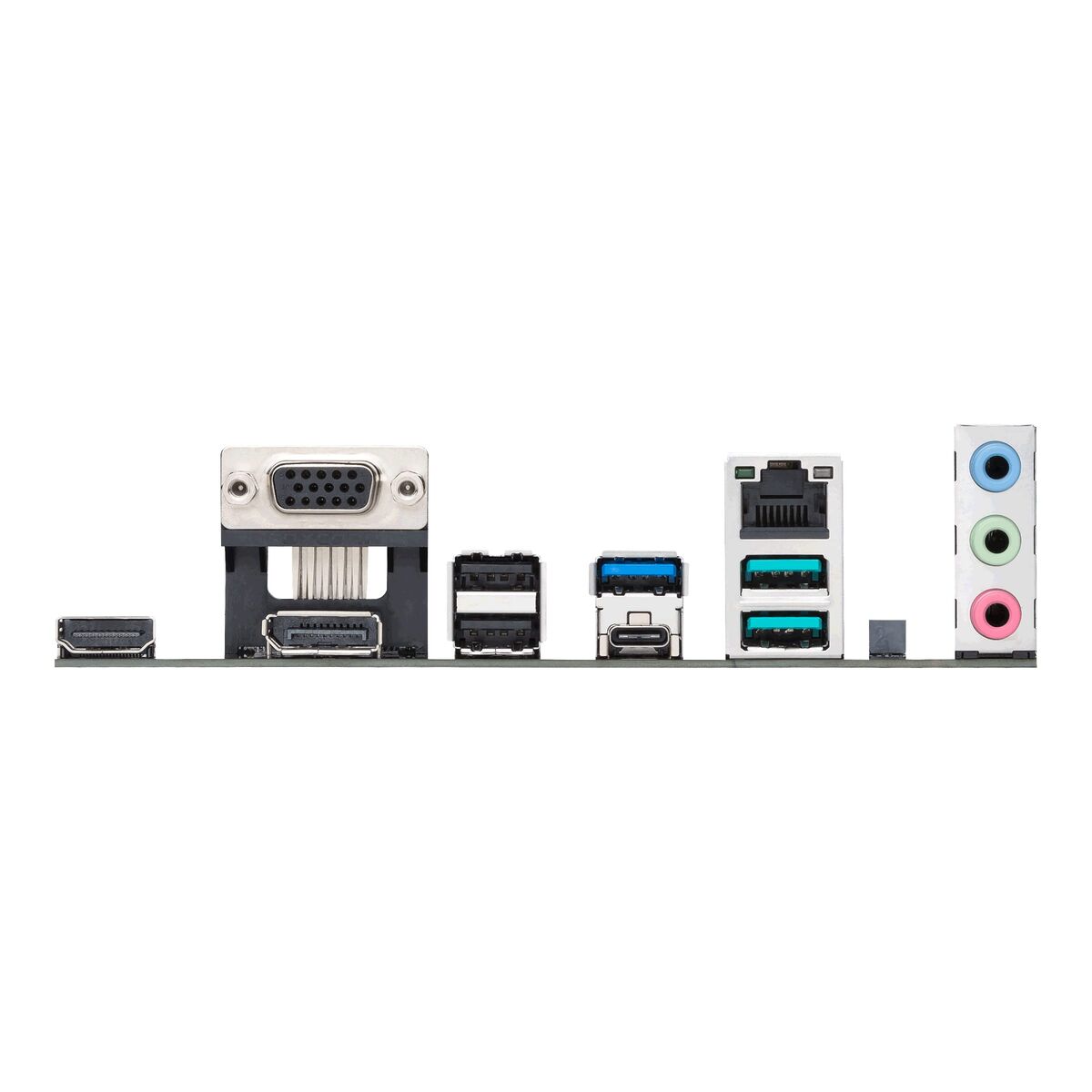

The motherboard Asus PRIME B760-PLUS D4 is designed to build desktop PCs based on latest-generation Intel processors, offering a balanced, up-to-date platform for work, gaming or general use. It features the Intel B760 chipset and LGA 1700 socket , compatible with a wide range of Intel® Celeron®, Pentium® Gold and Core™ i3, i5, i7 and i9 CPUs, allowing builds from basic to very powerful on a single socket. Its ATX form factor (305 x 244 mm) fits most standard towers and leaves room for clean component layout and airflow. It includes 4 DDR4-SDRAM DIMM slots in dual channel, supporting up to 128 GB of memory and speeds up to 5066 MHz (OC) , ensuring smooth multitasking and demanding applications. For storage, it offers 3 M.2 (M) slots and 4 SATA III ports , compatible with HDD and SSD , plus RAID 0, 1, 5 and 10 support to combine capacity, performance and redundancy. For graphics and expansion it provides 1 PCIe x16 Gen 5.0 slot , 1 PCIe x16 Gen 4.0 and 2 PCIe x1 Gen 3.0 , suitable for modern graphics cards and additional sound, capture or network cards. Rear connectivity includes 1 HDMI 2.1 , 1 DisplayPort 1.4 and 1 VGA , offering flexible onboard video output for CPUs with integrated graphics, plus 7.1-channel audio with S/PDIF out and front audio headers. Networking is handled by 2.5 Gigabit Ethernet via RJ-45, ideal for high-speed online gaming, data transfer or professional use, and it includes a Thunderbolt header for advanced expansion. The USB panel is extensive and modern, with USB 3.2 Gen 2x2 Type-C , USB 3.2 Gen 2 Type-A , USB 3.2 Gen 1 and USB 2.0 , plus internal headers for the case front panel, CPU and chassis fans, RGB LED strips, TPM header and 24-pin ATX plus 8-pin EPS power for stable power delivery. The board uses passive chipset cooling, reducing noise and simplifying maintenance, and comes with a UEFI AMI 128 MB BIOS that makes advanced system setup, memory profiles and firmware updates easier. Compatible with Windows 10 and Windows 11 , and including accessories such as SATA cables and user manual, the Asus PRIME B760-PLUS D4 is a solid, modern and versatile base for building latest-generation Intel desktop PCs. Type: Motherboard PCI Express 3.0 ATX UEFI Characteristics: USB Memory Connections: HDMI USB-C VGA RJ45 DisplayPort SATA USB 3.2 M.2 Ethernet LAN USB 2.0 HDMI x 1 2 x USB 2.0 SATA x 4 M.2 x 3 Thunderbolt x 1 HDMI 2.1 x 1 DIMM 2 x USB 3.2 Gen 2 (3.1 Gen 2) DisplayPort x 1 USB 2.0 x 2 RJ45 x 1 M.2 x 1 Chipset: Intel B760 Depth: 244 mm USB 2.0: 2 Connectivity: Bluetooth Bluetooth 5.2 Ethernet LAN Memory Type: DDR4 DDR5 Technology: DDR4 Colour: White Multicolour Compatible: Intel Core i5 Intel Core i3 LED strips Intel Celeron Intel Core i7 Intel Core i9 raid 0 Raid 10 raid 1 Raid 5 Windows 11 Windows 10 Intel Pentium Gold DDR4-SDRAM HDD/SSD PC Channels: 2 Channels 7.1 Maximum RAM Memory: 128 GB Speed: 4800 MHz 3200 MHz 5066 mhz 5000 MHZ 4000 MHz 3600 MHz 4266 MHz 2666 MHz 3733 MHz 3333 MHZ 2800 mhz 2400 MHz 3466 MHZ 3400 MHz 4600 MHz 2933 MHz 2133 MHz 3000 MHz 4400 MHz Power supply: ATX 3.5" bays: 4 Form factor: ATX Interface: Gigabit Ethernet Memory: 128 MB Number of memory slots: 4 Speakers: 7.1 Not included: WiFi Width: 30,5 cm Includes: SATA User manual Frequency: 2133 MHz Internal Memory: 128 GB Socket: LGA 1700 Processor Family: Intel
