Type: Fibre optic Colour: Silver Wavelength: 850 nm Connections: SFP Speed: 1250 Mbit/s Energy consumption: 1 W

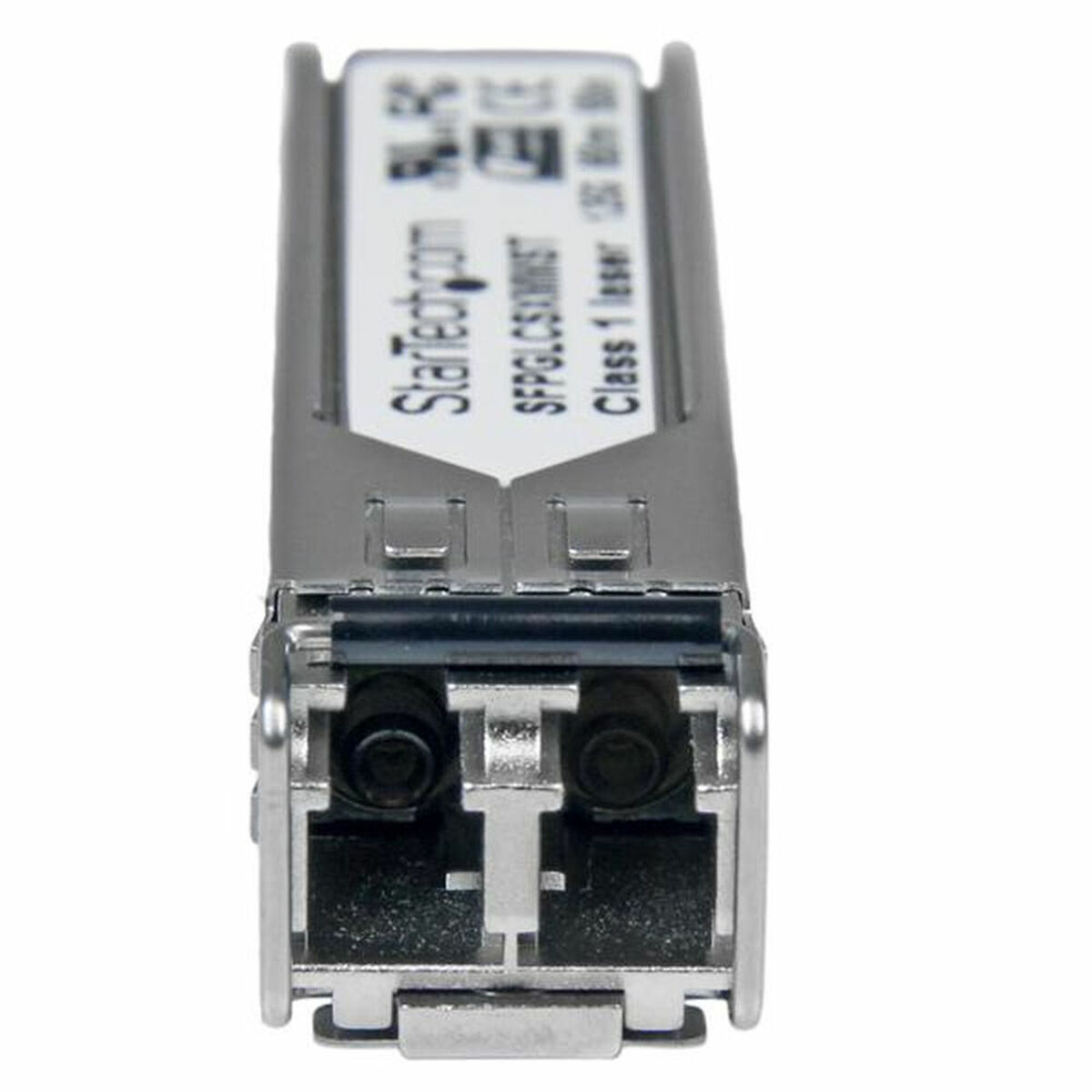

The Startech GLCSXMMDST multimode fiber optic SFP transceiver module is designed to provide reliable and efficient connectivity in high-speed networks requiring fiber optic transmission. This multimode fiber optic transceiver operates at a maximum speed of 1250 Mbit/s (1.25 Gbps) and uses an LC connector, compatible with Cisco environments employing the 1000BASE-SX standard. Its range reaches up to 550 meters , ideal for corporate networks, data centers, and telecom environments needing medium-range multimode cabling with maximum stability and low latency. The module features a wavelength of 850 nm and supports digital diagnostic monitoring (DDM) , enabling real-time monitoring of key parameters to ensure proper operation and anticipate potential failures. Built with a silver-finished aluminum housing , it combines durability with a compact, lightweight design, measuring 13.7 mm wide, 56.6 mm deep, and 12.5 mm high , facilitating integration into standard devices with SFP slots. Its low power consumption, under 1 watt , contributes to overall system efficiency by avoiding excess heat and unnecessary energy use. Additionally, this module supports hot-swapping , allowing replacement or upgrades without shutting down the network or equipment, increasing maintenance flexibility and reducing downtime. With a mean time between failures (MTBF) estimated at over 3.3 million hours and compliance certifications such as CE and RoHS , the Startech GLCSXMMDST ensures quality, performance, and adherence to international standards. This transceiver module is recommended for network professionals seeking a reliable, compatible solution to expand or maintain multimode fiber optic infrastructures, ensuring stable connections up to 1 Gbps with advanced diagnostic and management capabilities. Type: Transceiver Fibre optic MultiMode SFP+ Fibre Module Colour: Silver Connections: SFP LC SATA Speed: 1250 Mbit/s Material: Aluminium Range: 550 m Wavelength: 850 nm Certificate: RoHS Height: 32 cm Working range for temperature: 0º / 70º

Type: Transceiver Fibre optic MultiMode SFP+ Fibre Module Colour: Silver Connections: SFP LC SATA Speed: 1250 Mbit/s Depth: 57 mm Material: Aluminium Range: 550 m Wavelength: 850 nm Certificate: RoHS Working range for temperature: 0º / 70º

Type: Fibre optic MultiMode SFP+ Fibre Module Transceiver Colour: Silver Range: 200 m Wavelength: 1310 nm Data transfer: 10000 Mbit/s Connections: SFP+ LC Compatible: Universal PC Approx. weight: 20 g Connection: SFP+ Certificate: CE - RoHS Energy consumption: 1.3 kWh

The ZyXEL SFP10G-SR-E-ZZBD01F SFP+ multimode fiber module is a professional solution designed for high-speed data transmission in advanced network infrastructures, delivering reliable and stable performance in enterprise and data center environments. This SFP+ optical transceiver uses multimode fiber optic technology , supporting transfer rates up to 10,000 Mbit/s (10 Gbps) , making it ideal for applications requiring high bandwidth and low latency. It operates at a wavelength of 850 nm , compatible with a wide range of systems and switches supporting the SFP+ standard, and offers a maximum transmission distance of up to 300 meters over multimode cabling, enabling efficient connections between racks or cabinets in large-scale technology installations. Its robust construction features steel finishes and a black color, ensuring durability and resistance even in demanding conditions, while maintaining compact dimensions of 14.8 mm width, 56.5 mm depth, and 11.8 mm height to fit easily into tight or dense spaces. The module is optimized for use with ZyXEL devices and is compatible with most solutions supporting SFP+ interfaces, ensuring seamless integration and easy management. It supports an input voltage range between 3.14 and 3.46 V and a maximum current of 0.3 A, providing energy efficiency and operational stability throughout the product’s lifecycle. Manufactured in China under strict quality standards, this module is suitable for both expansions and replacements in multimode optical network infrastructures. Choosing the ZyXEL SFP10G-SR-E-ZZBD01F is a reliable investment in high-speed professional connectivity solutions. Connections: SFP+ LC Type: Fibre optic MultiMode SFP+ Fibre Module Speed: 10000 Mbit/s Range: 300 m Wavelength: 850 nm Country/Region of manufacture: China Colour: Black

The D-Link DEM-410T network card is a wired device designed to deliver high-speed connections and reliable performance in professional and advanced network infrastructure environments. This card features a 10 Gigabit CX4 port supporting speeds of up to 20 Gbps in full duplex mode , compliant with the IEEE 802.3ak standard, enabling extremely fast and efficient data transfers, ideal for aggregation links and server connections requiring high throughput and low latency. Its silver color design highlights the product’s robustness and professionalism, while support for Ethernet LAN , SFP , and SFP+ connections facilitates integration into various network infrastructures, providing versatility and compatibility. Additionally, this model supports the use of a dual-axial copper cable up to 5 meters without external transceivers, reducing costs and simplifying maintenance in short installations, including a 1-meter cable for immediate connection. Its efficient design not only ensures an economical connection but also minimal latency, essential for applications demanding fast response and stability such as data centers, network storage systems, and real-time data transmission. Manufactured in 2018, the DEM-410T offers a cost-effective, high-performance solution for those looking to expand or upgrade their wired networks with 10G copper technology, guaranteeing sustainable performance and compatibility with current infrastructures. Therefore, this network card is a solid technical choice for environments requiring high speeds, reliability, and easy integration without compromising investment. Colour: Silver Golden Connections: SFP+ Ethernet LAN Type: Network Card Speed: 10000 Mbit/s Range: 30 m AC input voltage: 3.3 V Year: 2018 Power: 3600 W Voltage: 3,3 V The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks. SFP transceiver type: Copper Maximum data transfer rate: 10000 Mbit/s Interface type: SFP+ Maximum transfer distance: 30 m Ethernet LAN (RJ-45) ports: 1 Product colour: Silver Package width: 74 mm Package depth: 131 mm Package height: 49 mm Package weight: 64 g Shipping (inner) case length: 36 cm Shipping (inner) case width: 26 cm Shipping (inner) case height: 31 cm Shipping (inner) case net weight: 3.2 kg Products per shipping (inner) case: 50 pc(s) Pallet gross weight (air): 272 kg Master (outer) cases per pallet (air): 60 pc(s) Products per pallet (air): 3000 pc(s) Pallet gross length: 102 cm Pallet gross width: 122 cm Pallet height (air): 199 cm Pallet gross weight (sea): 272 kg Master (outer) cases per pallet (sea): 60 pc(s) Products per pallet (sea): 3000 pc(s) Pallet height (sea): 199 cm Shipping (inner) case gross weight: 4.2 kg
