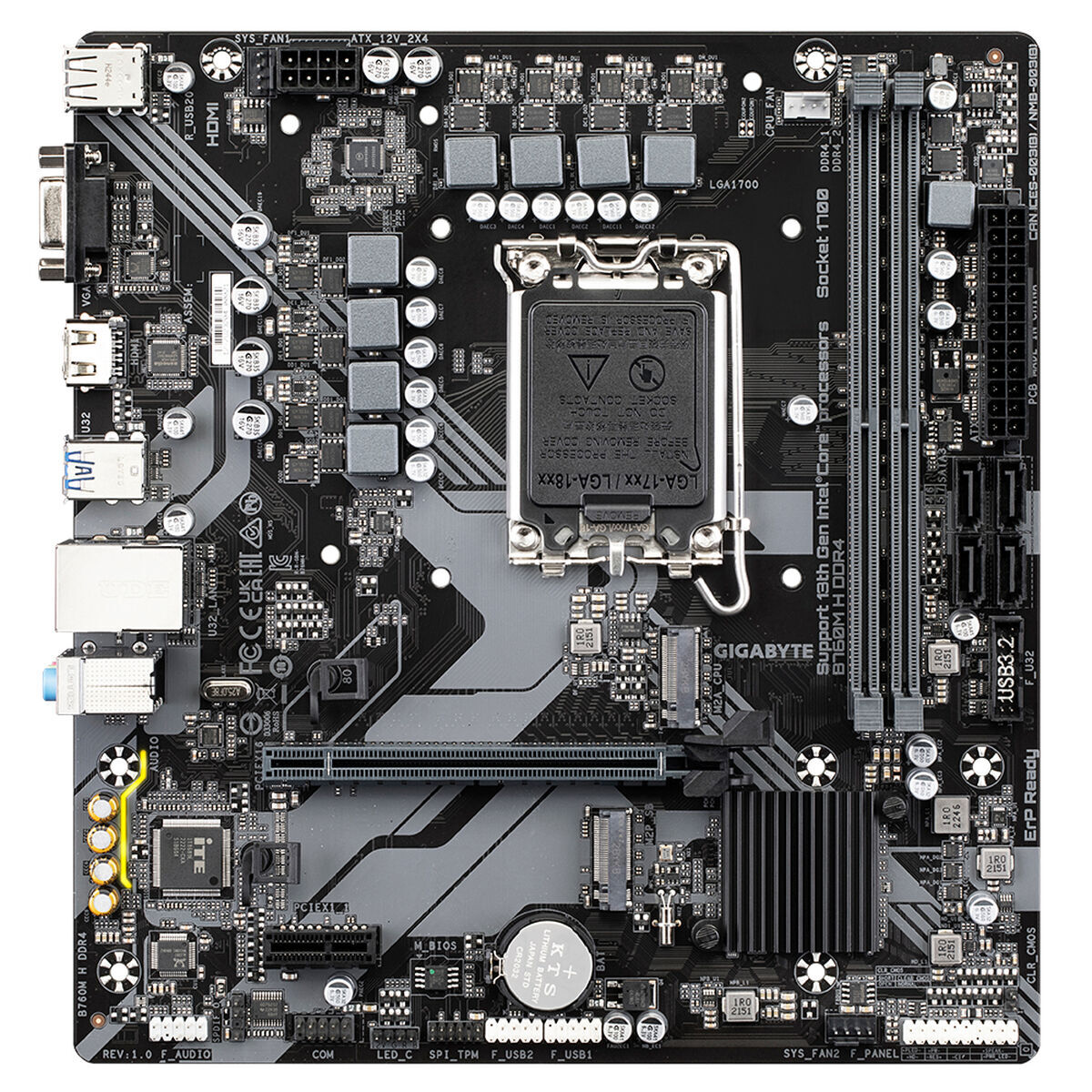

Motherboard Gigabyte 9MB76MH4-00-10 INTEL B760 EXPRESS LGA 1700

The motherboard Gigabyte B760M H DDR4 (model 9MB76MH4-00-10 ) is designed for desktop PCs with latest‑generation Intel processors, offering a solid, up‑to‑date base for home, office or light gaming builds. It features the Intel B760 Express chipset and an LGA 1700 socket , compatible with Intel® Celeron® and Intel® Pentium® Gold and, in general, with Intel CPUs for this platform, enabling efficient, easily upgradable systems. Its MicroATX (mATX) format of 230 x 215 mm fits most compact ATX‑compatible cases, combining good expansion with a small footprint. For memory, it includes 2 DDR4‑SDRAM DIMM slots in dual channel , supporting up to 64 GB and speeds up to 3200 MHz , with support for a wide range of module capacities to suit both basic setups and more demanding multitasking. For storage, it offers 4 SATA III ports for 2.5"/3.5" HDDs and SSDs, plus 2 M.2 slots for high‑speed SSDs, with RAID 0/1/5/10 support to improve performance or data redundancy. For graphics and expansion, it provides a PCI Express x16 Gen 4.0 slot for a dedicated graphics card and additional PCIe slots for controllers or expansion cards, while the CPU’s integrated graphics can be used via HDMI 1.4, DisplayPort 1.4 and VGA outputs , covering both modern and older displays. Rear connectivity includes Gigabit Ethernet (RJ‑45) for stable wired networking, 4 USB 3.2 Gen 1 Type‑A ports and 2 USB 2.0 ports , plus internal headers for front‑panel USB. For audio, it integrates the Realtek ALC897 audio chip with 7.1‑channel output , suitable for multichannel speaker systems or everyday headsets. The board includes key connectors such as 24‑pin ATX , 8‑pin EPS , CPU fan header, TPM header, internal USB headers, front audio connector and headers for RGB LED strips , ensuring proper power, cooling and customization. Its 128 MB UEFI AMI BIOS allows advanced, up‑to‑date configuration, with support for Windows 10 and Windows 11 , plus features such as a clear CMOS jumper for easy reset. With a discreet brown design and a 3‑year warranty, this Gigabyte MicroATX motherboard is a balanced, reliable solution for building or upgrading an LGA 1700, DDR4‑based PC. Type: Motherboard ATX UEFI Characteristics: USB Memory Connections: HDMI VGA RJ45 Jack 3.5 mm SATA PCI Express 3.0 USB 3.2 M.2 Ethernet LAN HDMI x 1 2 x USB 2.0 SATA x 4 M.2 x 2 DIMM x 4 DIMM x 2 HDMI 1.4 DIMM 4 x USB 3.2 Gen 1 (3.1 Gen 1) DisplayPort x 1 RJ45 x 1 Form factor: mATX MicroATX Chipset: Intel B760 INTEL B760 EXPRESS Number of memory slots: 2 Power supply: ATX USB 2.0: 2 Width: 230 mm 23 cm Operating System: Windows 10 Windows 11 Memory Type: DDR4 SDRAM DDR4 Ethernet LAN: Yes Compatible: LED strips Intel Celeron raid 0 Raid 10 raid 1 Raid 5 Windows 11 Windows 10 Intel Pentium Gold DDR4-SDRAM PC Channels: 2 Channels 7.1 Speed: 3200 MHz 2666 MHz 2400 MHz 2933 MHz 2133 MHz 3000 MHz Colour: Brown Model: Serie 1 Internal Memory: 64 GB Interface: Gigabit Ethernet Battery: CR2032 Memory: 128 MB Batteries included: Yes Speakers: 7.1 Connectivity: Ethernet LAN Connectors: SATA x 4 Not included: WiFi Sound: Realtek ALC897 Socket: LGA 1700 RAM Memory: 64 GB RAM Processor Family: Intel Maximum RAM Memory: 64 GB
