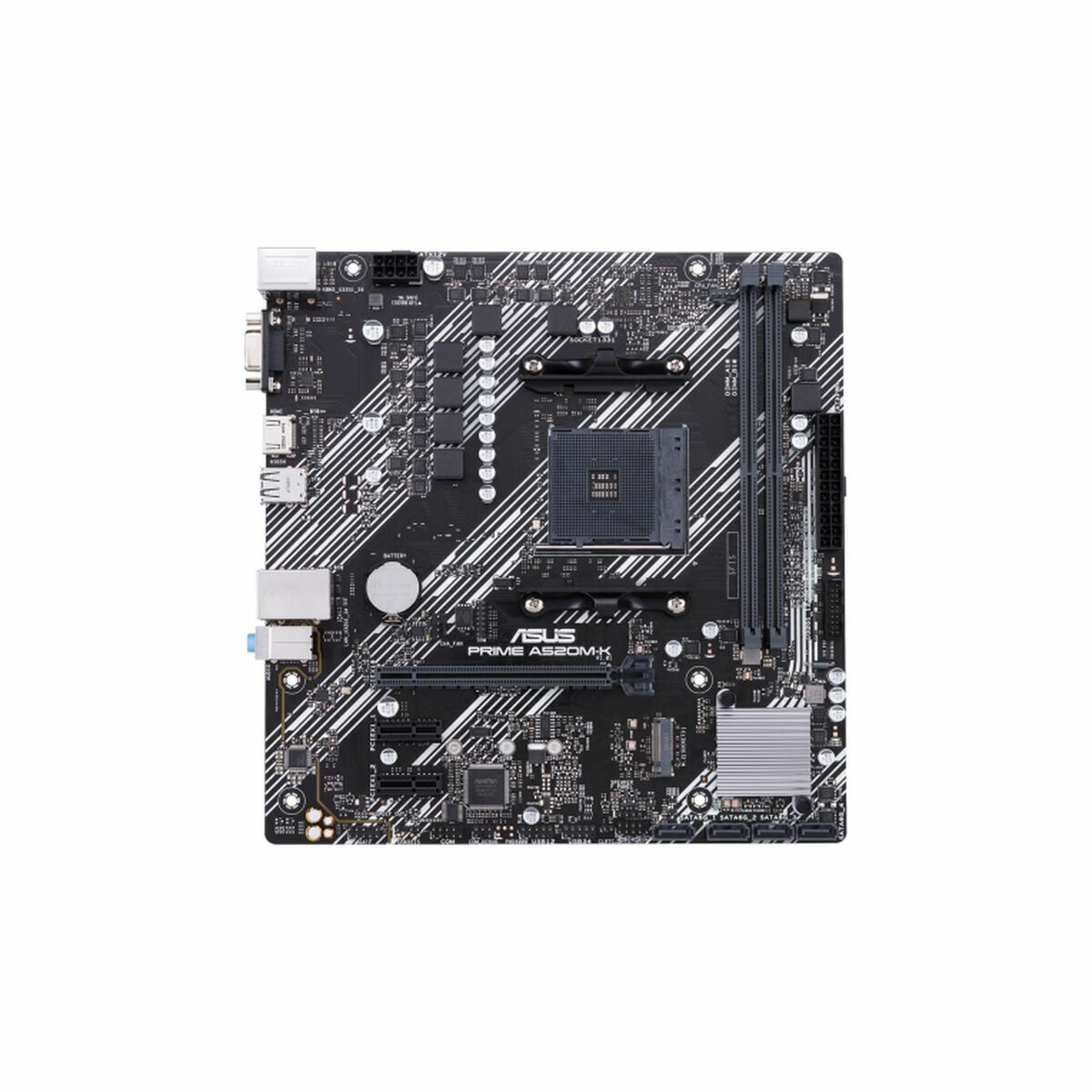

Motherboard Asus PRIME PRIME A520M-K AMD A520 AMD AM4

The motherboard Asus PRIME A520M-K is designed for AMD-based systems and offers a stable, up-to-date platform thanks to its AMD A520 chipset and AM4 socket , compatible with a wide range of Ryzen CPUs. With a MicroATX form factor (22.6 x 22.1 cm) , it fits easily into compact cases without sacrificing essential connectivity. It includes 2 DDR4 DIMM slots supporting up to 64 GB of DDR4-SDRAM , with frequencies from 2133 MHz , suitable for home, office and light gaming PCs. For storage, it offers 4 SATA 6 Gb/s ports for HDDs and SSDs and 2 M.2 slots , allowing you to combine conventional and high-speed drives in the same system. For expansion, it features PCI Express x16 for a dedicated graphics card and other internal ports needed for flexible configurations. Rear connectivity includes HDMI 2.1 for high-definition video output, PS/2 for legacy peripherals, RJ45 Gigabit Ethernet with Realtek RTL8111H 1 Gb controller, and a full audio panel based on the Realtek ALC887 chipset with 7.1 sound , 3.5 mm jack outputs and S/PDIF . For USB connectivity, it provides 4 x USB 3.2 Gen 1 and 2 x USB 2.0 , plus internal headers for additional front connectors, covering typical needs for peripherals and external storage. The power system uses 24-pin EATX and 8-pin CPU connectors to deliver stable power to components, while the UEFI BIOS makes hardware setup straightforward and ensures compatibility with Windows 10 and other modern systems. The Asus PRIME A520M-K MicroATX is thus a solid, efficient base for AMD desktop PCs aimed at a balanced mix of productivity and entertainment. Type: Motherboard mATX ATX UEFI Connections: SATA 6 Gb/s x 4 24-pin EATX x 1 S/PDIF x 1 M.2 x 2 8-pin eATX x 1 USB 3.2 x 4 Ethernet LAN USB 2.0 USB 3.2 M.2 SATA VGA RJ45 PCI Express 3.0 HDMI USB HDMI x 1 2 x USB 2.0 Microphone SATA x 4 PS/2 x 1 Jack 3.5 mm x 3 DIMM x 2 HDMI 2.1 x 1 DIMM 4 x USB 3.2 Gen 1 (3.1 Gen 1) PCI Express x16 2.0 USB 2.0 x 2 RJ45 x 1 Sound: Realtek ALC887 Connectivity: Realtek RTL8111H 1Gb Ethernet REALTEK RTL8111H Wi-Fi Ethernet LAN Realtek 8111H Approx. dimensions: 22.6 x 22.1 cm Socket: Socket AM4 Chipset: AMD AM4 AMD A520 Memory Type: DDR4 SDRAM DDR4 Number of memory slots: 2 Compatible: Windows 10 AMD Ryzen 7 AMD Ryzen 5 AMD Ryzen 3 AMD Ryzen 9 DDR4-SDRAM HDD/SSD PC USB 2.0: 2 Speed: 2133 MHz 2400 MHz 3200 MHz 2666 MHz 3000 MHz 3600 MHz 4000 MHz 3733 MHz 4600 MHz 4400 MHz 3333 MHZ 3466 MHZ 2800 mhz 3866 mhz Form factor: mATX MicroATX Processor: AMD Width: 226 mm Material: Plastic Platform: Windows Internal Memory: 64 GB Operating System: Windows 10 Interface: Gigabit Ethernet Memory: 256 MB Speakers: 7.1 Power: 3600 W Not included: WiFi Includes: SATA Frequency: 2133 MHz RAM Memory: 64 GB RAM Processor Family: AMD Maximum RAM Memory: 64 GB Prime ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Cooler by Design PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads. Build on a Solid Foundation Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. M.2 (up to 32 Gbps) Achieve speed with onboard M.2M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data. Little Things Make a Big Difference Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a unique personal look. Outstanding Audio Combined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you've ever experienced. Processor manufacturer: AMD Compatible processor series: AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 Supported memory types: DDR4-SDRAM Number of memory slots: 2 Maximum internal memory: 64 GB Memory slots type: DIMM Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4400,4600 MHz Supported storage drive interfaces: M.2,SATA USB 2.0 connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 VGA (D-Sub) ports quantity: 1 HDMI ports quantity: 1 PS/2 ports quantity: 1 Wi-Fi: N Ethernet LAN: Y LAN controller: Realtek RTL8111H Motherboard form factor: micro ATX Motherboard chipset family: AMD Motherboard chipset: AMD A520 Windows operating systems supported: Windows 10 BIOS type: UEFI AMI BIOS memory size: 256 Mbit Width: 226 mm Depth: 221 mm
