Motherboard MSI A520M-A PRO AMD A520 AMD AMD AM4

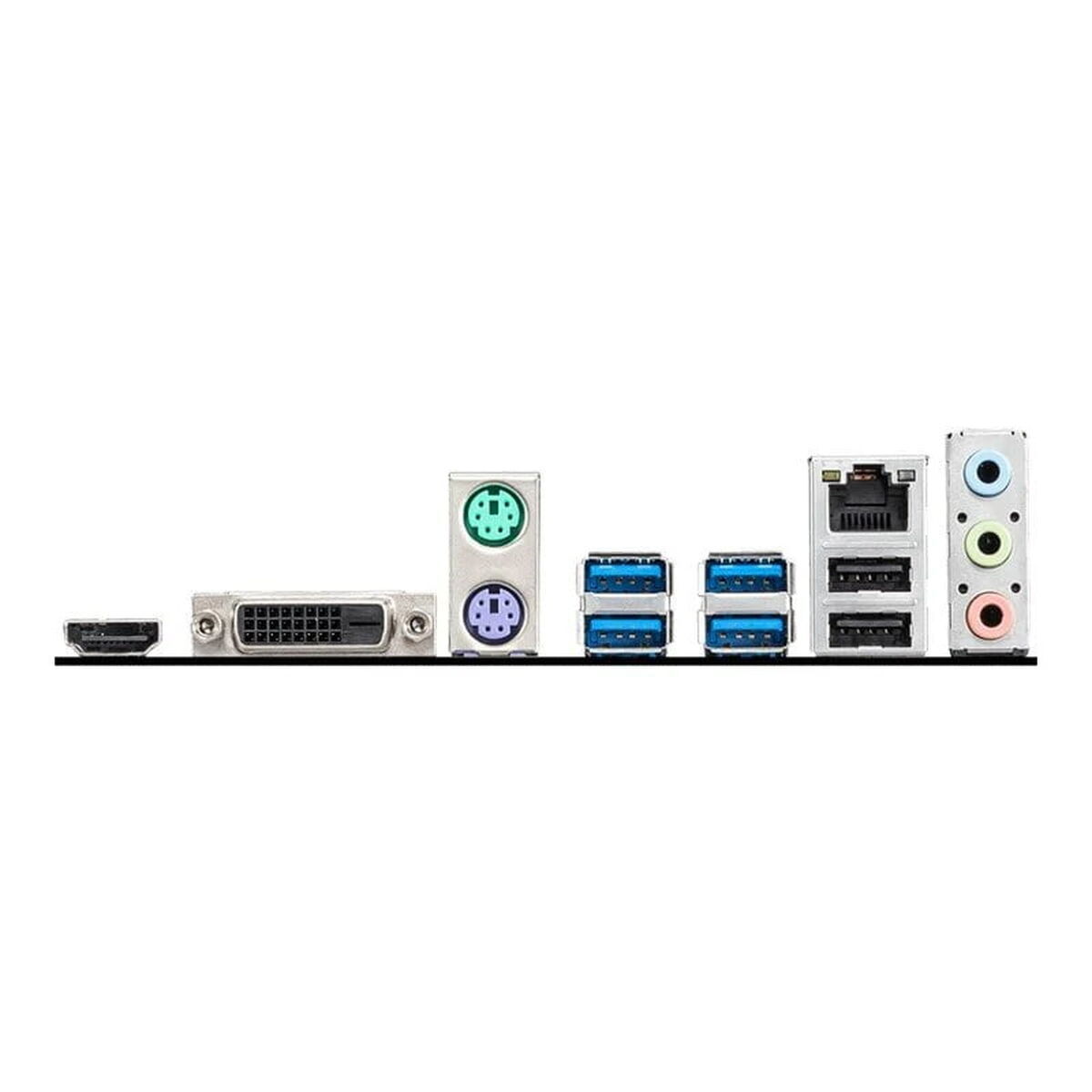

The MSI A520M-A PRO motherboard is designed for desktop PCs with AMD processors, offering a solid and stable base for work and general use thanks to its AMD A520 chipset and AM4 socket , compatible with 3rd Gen AMD Ryzen processors (Ryzen 3, Ryzen 5, Ryzen 7 and Ryzen 9) and Radeon Vega integrated graphics on selected models. Its MicroATX form factor (approx. 236 x 200 mm) lets you build compact systems without losing key functions, integrating 2 DDR4 DIMM dual‑channel slots supporting up to 64 GB of memory , high frequencies (up to 4600 MHz OC, depending on module) and compatibility with ECC and non‑ECC unbuffered memory , providing flexibility for different setups. For expansion, it includes one PCI Express x16 Gen 3.0 slot for a dedicated graphics card and one PCIe x1 slot for peripherals such as sound or capture cards. For storage, it supports HDD and SSD drives through 4 SATA III 6 Gb/s ports and offers RAID 0, 1 and 10 , allowing a balance of performance and data redundancy. External connectivity includes 1 HDMI port and 1 DVI-D with maximum resolution of 4096 x 2160 pixels and up to 2 displays, providing video output when using processors with integrated GPU. Networking is handled by Gigabit Ethernet with Realtek RTL8111H controller for a stable wired link, while audio is managed by the Realtek ALC892 codec with 7.1-channel output for surround sound, plus headphone and microphone jacks. The rear panel offers 4 USB 3.2 Gen 1 Type-A ports and 2 USB 2.0 ports , complemented by internal headers for front USB 2.0 and USB 3.2, as well as front audio, a 24‑pin ATX power connector, CPU power connector, 1 CPU fan header and 2 system fan headers, plus a chassis intrusion connector for better system monitoring. The MSI PRO series adds a 2 oz copper PCB to improve thermal dissipation and reliability, along with electrostatic discharge (ESD) protection around the mounting holes, reducing the risk of damage during installation and long‑term use. Overall, this MicroATX motherboard is a balanced and reliable solution for building a modern AMD PC with good connectivity, expansion options and long‑term stability. Type: Motherboard ATX Connections: PS/2 SATA 6 Gb/s x 4 USB 2.0 x 6 DVI-D Ethernet LAN 4-pin ATX 12V x 1 24-pin ATX x 1 USB 3.2 x 6 Sata III USB 2.0 USB 3.2 HDMI HDMI x 1 2 x USB 2.0 Microphone SATA x 4 DIMM x 4 DIMM x 2 DIMM 4 x USB 3.2 Gen 1 (3.1 Gen 1) PCI Express x16 2.0 USB 2.0 x 2 RJ45 x 1 Number of memory slots: 2 Compatible: AMD® Ryzen 1st, 2nd y 3rd Generation, Ryzen Radeon Vega Graphics Processors AMD Ryzen 3 AMD Ryzen 5 AMD Ryzen 7 AMD Ryzen 9 DDR4-SDRAM HDD/SSD PC Connectivity: Realtek RTL8111H 1Gb Ethernet Gigabit Ethernet Ethernet LAN Realtek 8111H Depth: 200 mm 20 cm Socket: Socket AM4 AMD AM4 Chipset: AMD AM4 AMD A520 AMD Units: 2 Units USB 2.0: 2 Processor: AMD Otros: RAID DVI Form factor: mATX MicroATX Memory Type: DDR4 SDRAM DDR4 Technology: DDR4 Colour: White Black Approx. dimensions: 26 x 6 x 27 cm Material: Iron Year: 2020 Internal Memory: 64 GB Interface: Gigabit Ethernet Speakers: 7.1 Sound: Realtek ALC892 Not included: WiFi Power: 50 W Battery type: Litio Ion Processor Family: AMD Resolution (px): 4096 x 2160 px Maximum RAM Memory: 64 GB PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FULLY FAN CONTROLFULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. EZ DEBUG LED Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again. DOUBLE ESD PROTECTIONULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. USB 3.2 GEN 1 Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. PCB WITH 2OZ THICKENED COPPER An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. Processor manufacturer: AMD Processor socket: Socket AM4 Compatible processor series: AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 Maximum number of SMP processors: 1 Supported memory types: DDR4-SDRAM Number of memory slots: 2 Maximum internal memory: 64 GB Memory slots type: DIMM Memory channels: Dual-channel ECC: Y Non-ECC: Y Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz Unbuffered memory: Y Supported storage drive interfaces: PCI Express 3.0,SATA Supported storage drive types: HDD & SSD Number of HDDs supported: 5 RAID levels: 0,1,10 Maximum resolution: 4096 x 2160 pixels Number of displays supported: 2 USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Y Front panel connector: Y ATX Power connector (24-pin): Y CPU fan connector: Y Number of chassis fan connectors: 2 Chassis intrusion connector: Y USB 2.0 ports quantity: 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 DVI-D ports quantity: 1 Headphone outputs: 1 Microphone in: Y Wi-Fi: N Ethernet LAN: Y Ethernet interface type: Gigabit Ethernet LAN controller: Realtek RTL8111H Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Motherboard chipset: AMD A520 Audio output channels: 7.1 channels Audio chip: Realtek ALC892 Number of mounting holes: 8 PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 3.x) slots: 1 Width: 236 mm Depth: 200 mm
