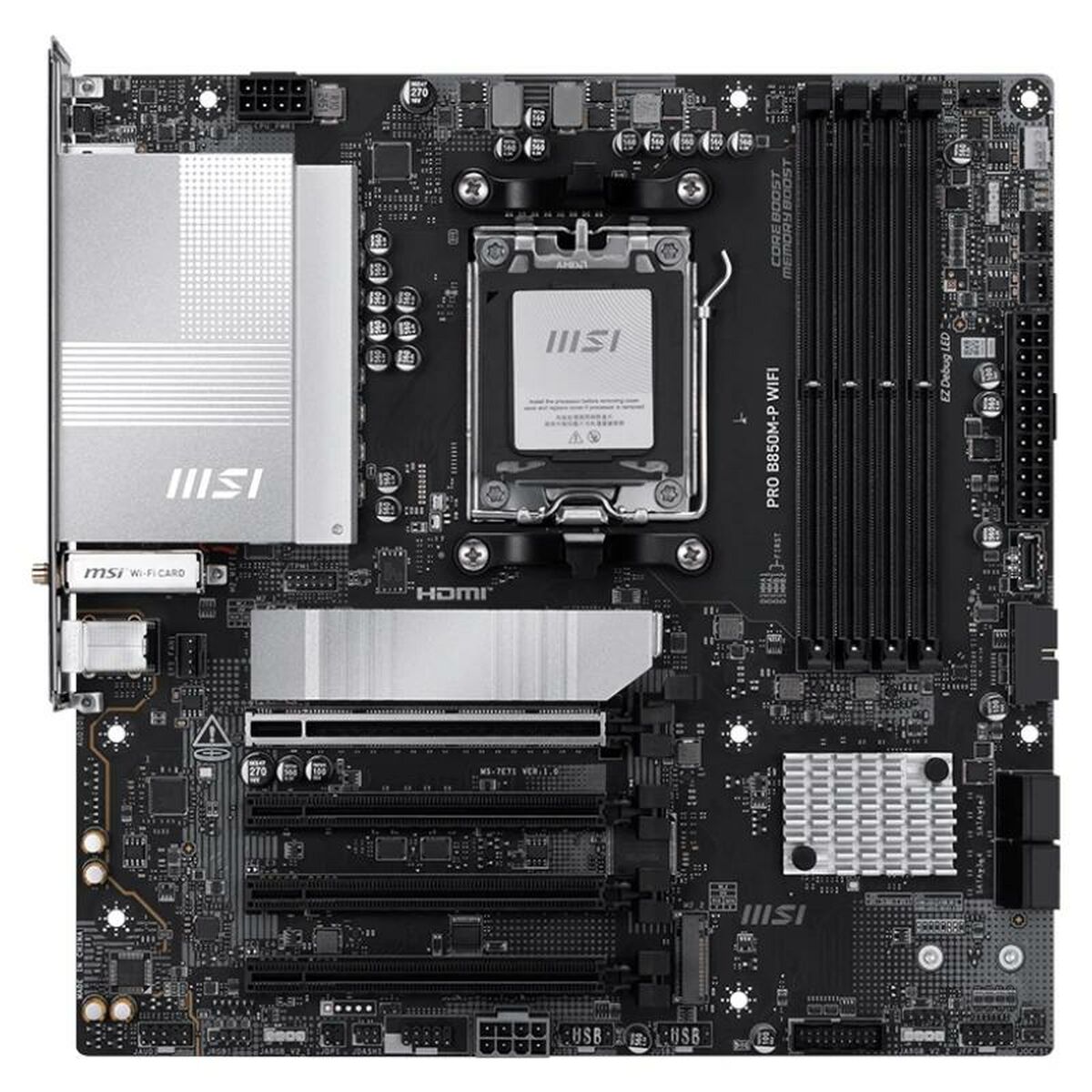

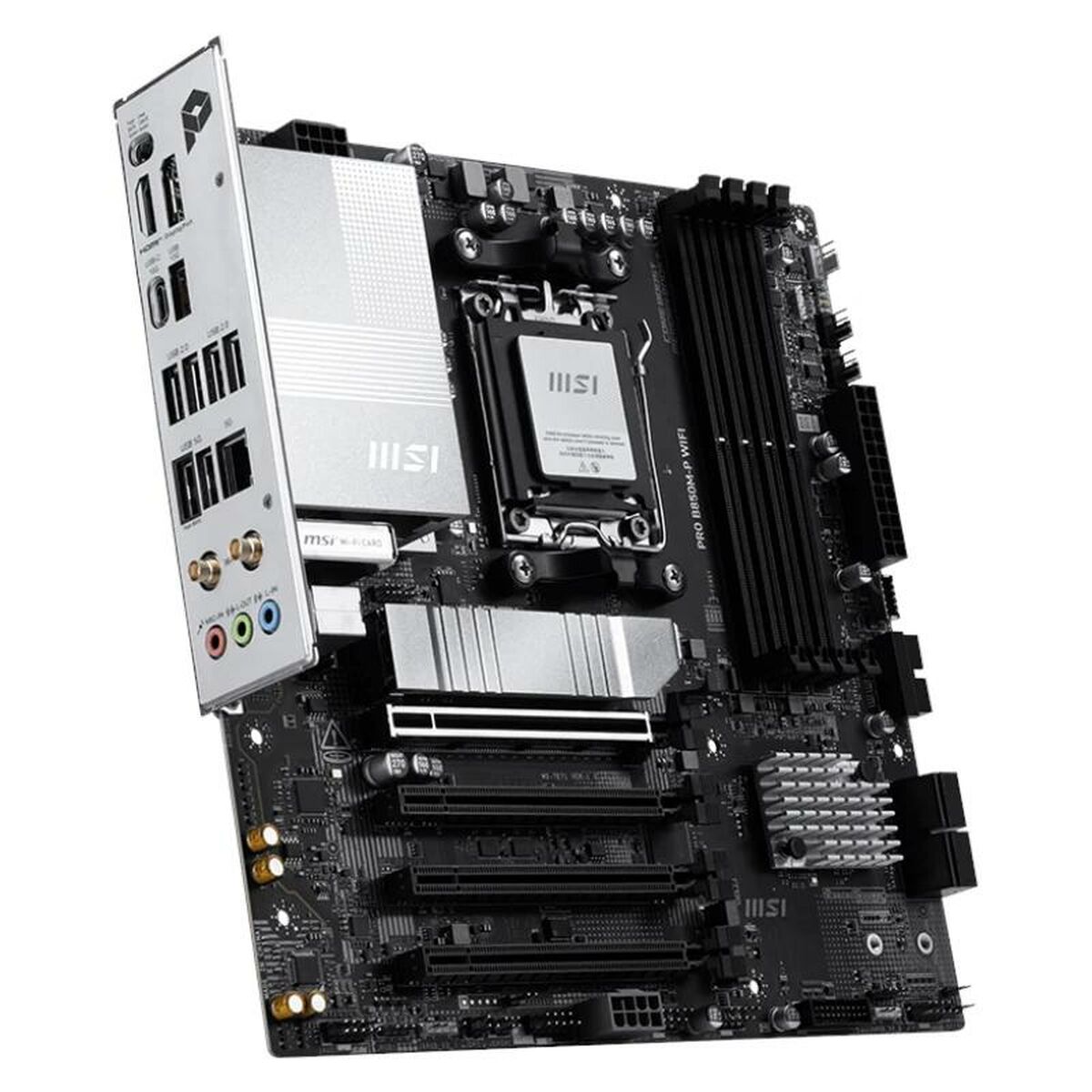

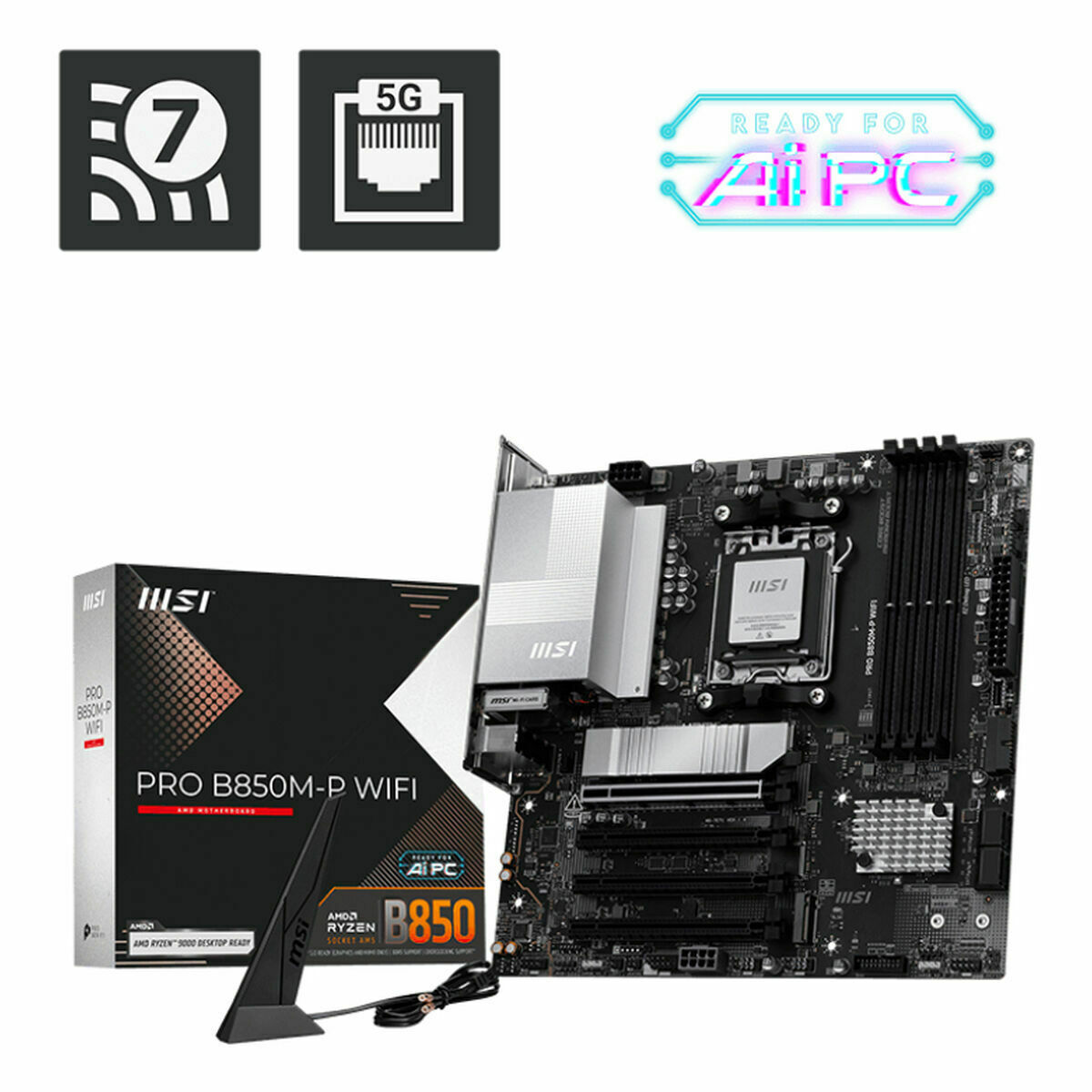

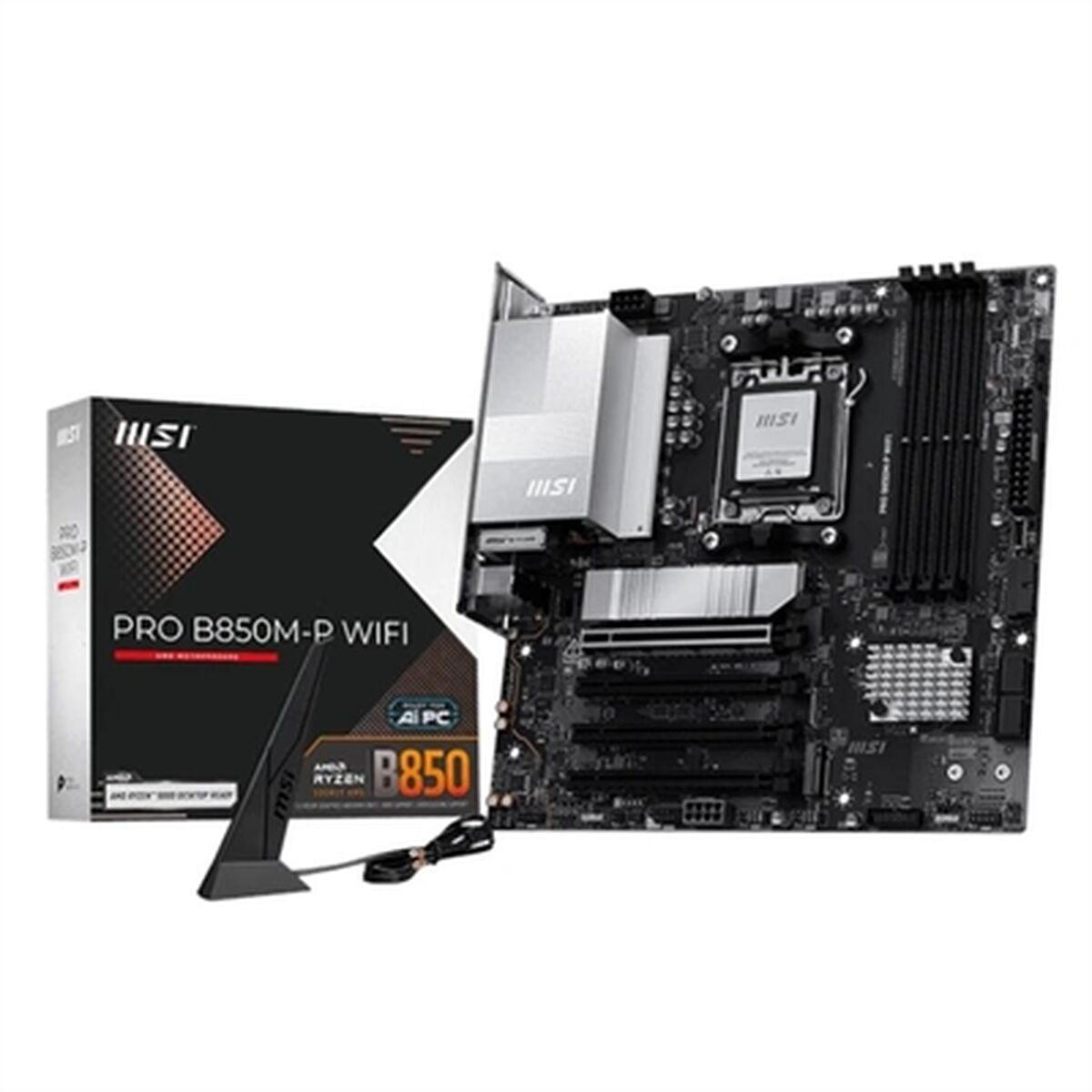

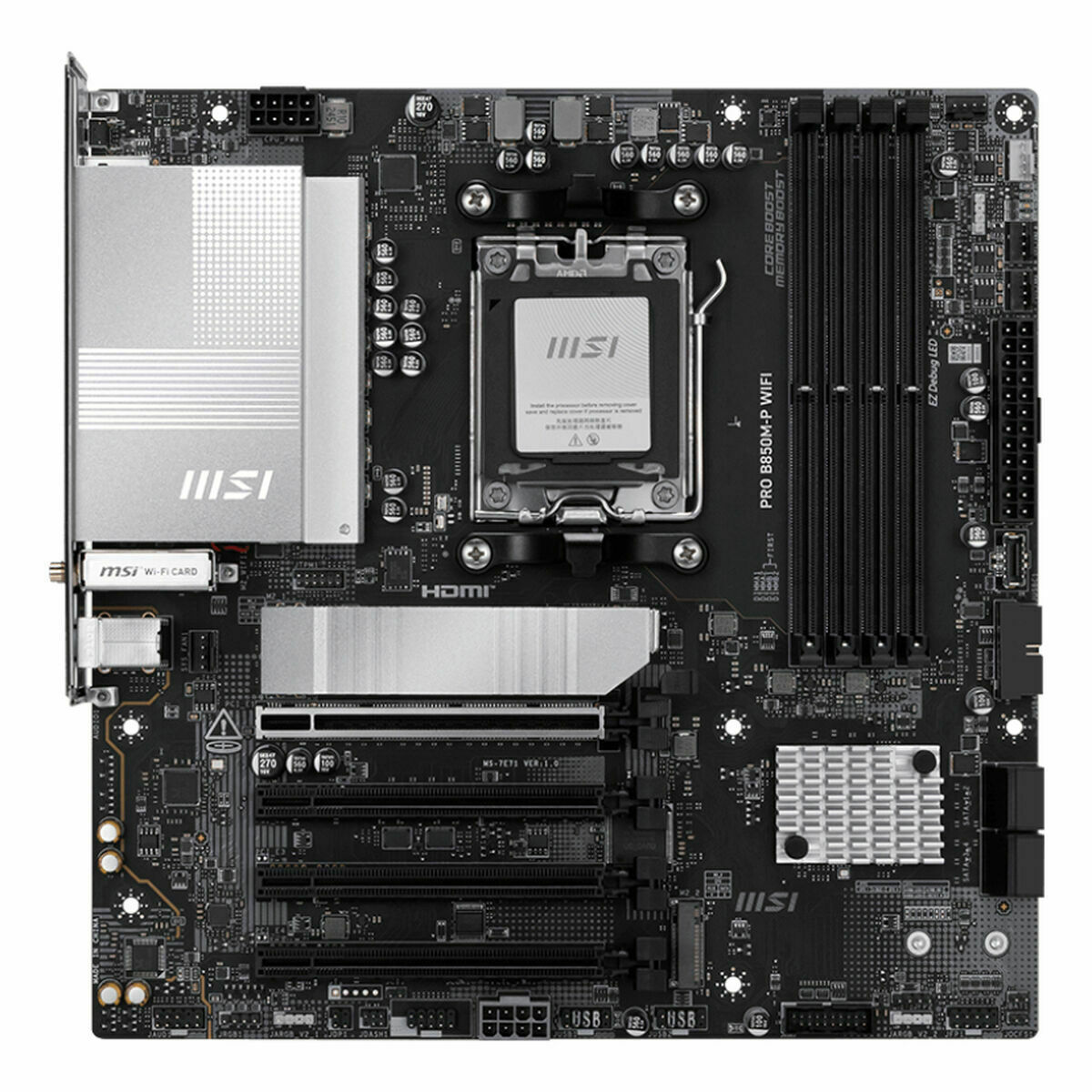

Motherboard MSI PRO B850M-P WIFI AMD AM5

The MSI PRO B850M-P WIFI Motherboard is an advanced and versatile solution designed for desktop systems with AMD Ryzen 7000, 8000, and 9000 series processors , thanks to its AM5 socket and AMD B850 chipset . Built in a MicroATX (mATX) form factor with compact dimensions of 243.84 mm x 243.84 mm, this board offers a perfect balance between functionality and space, ideal for setups requiring efficiency and technical performance without sacrificing compatibility with high-performance devices. It features four DDR5 UDIMM memory slots with a maximum capacity of 256 GB , supporting frequencies from 4800 MHz up to 8200+ MHz (OC) , and supports AMD optimization technologies like EXPO™ and overclocking , allowing memory performance tuning to meet advanced user and professional needs. For expansion, it includes four PCI Express slots , including a main slot compatible with PCIe 5.0 x16 for graphics cards or high-bandwidth devices, ensuring maximum speed and future-proofing for next-gen components. For integrated graphics, it offers HDMI 2.1 and DisplayPort 1.4 outputs with up to 4K resolution at 60 Hz, available only with CPUs that have integrated graphics. Regarding internal and external connectivity, it provides a wide range of ports, including USB 2.0, USB 5 Gbps, and USB 10 Gbps Type-A and Type-C , plus a Realtek 8126 5G Gigabit LAN connector for high-speed networks and built-in Wi-Fi and Bluetooth, ensuring efficient connection in any environment. Storage is well covered with three M.2 slots (one PCIe 5.0 x4 from CPU, two PCIe 4.0) and four SATA 6G ports, supporting RAID 0, 1, 5, and 10 configurations to enhance both speed and data security, with RAID 5 exclusive to the Ryzen 9000 series. Its 7.1-channel high-definition audio system managed by the Realtek ALC897 chipset guarantees clear, balanced sound for various uses. Finally, it is compatible with Windows 11 64-bit , facilitating integration with the latest optimized operating systems. Overall, the MSI PRO B850M-P WIFI is a robust and complete motherboard, especially aimed at users needing a flexible and capable platform to build modern AMD AM5 CPU systems, providing support for the latest memory, storage, and connectivity technologies. Type: Motherboard ATX UEFI Bluetooth: Yes Chipset: AMD B850 AMD AM5 AMD Connections: 24 PIN x 1 HDMI USB 3.2 Audio Output PCI Express (x16) x 1 USB 3.2 x 4 PCI Express (x4) x 1 USB 3.2 x 3 PCI Express 3.0 (x16) x 1 USB-C 3.2 x 2 HDMI 2.1 USB 2.0 HDMI x 1 Ethernet LAN SATA x 4 M.2 x 3 HDMI 2.1 x 1 PCI Express x 1 DIMM 4 x USB 3.2 Gen 1 (3.1 Gen 1) USB 3.2 x 1 RJ45 x 1 Channels: 2 Channels 7.1 Connectivity: Wi-Fi 4 Wi-Fi 5 GHz Bluetooth Wi-Fi Compatible: LED strips Windows 11 Raid 10 raid 0 raid 1 HDD/SSD PC Memory Type: DDR5 SDRAM DDR5 Speed: 6000 MHz 6400 MHz Processor: AMD Form factor: mATX MicroATX Colour: White Black Platform: Windows Memory: 256 MB Number of memory slots: 4 Speakers: 7.1 Connectors: SATA x 4 Power: 50 W Sound: Realtek ALC897 Internal Memory: 128 GB Socket: AMD AM5 Processor Family: AMD
