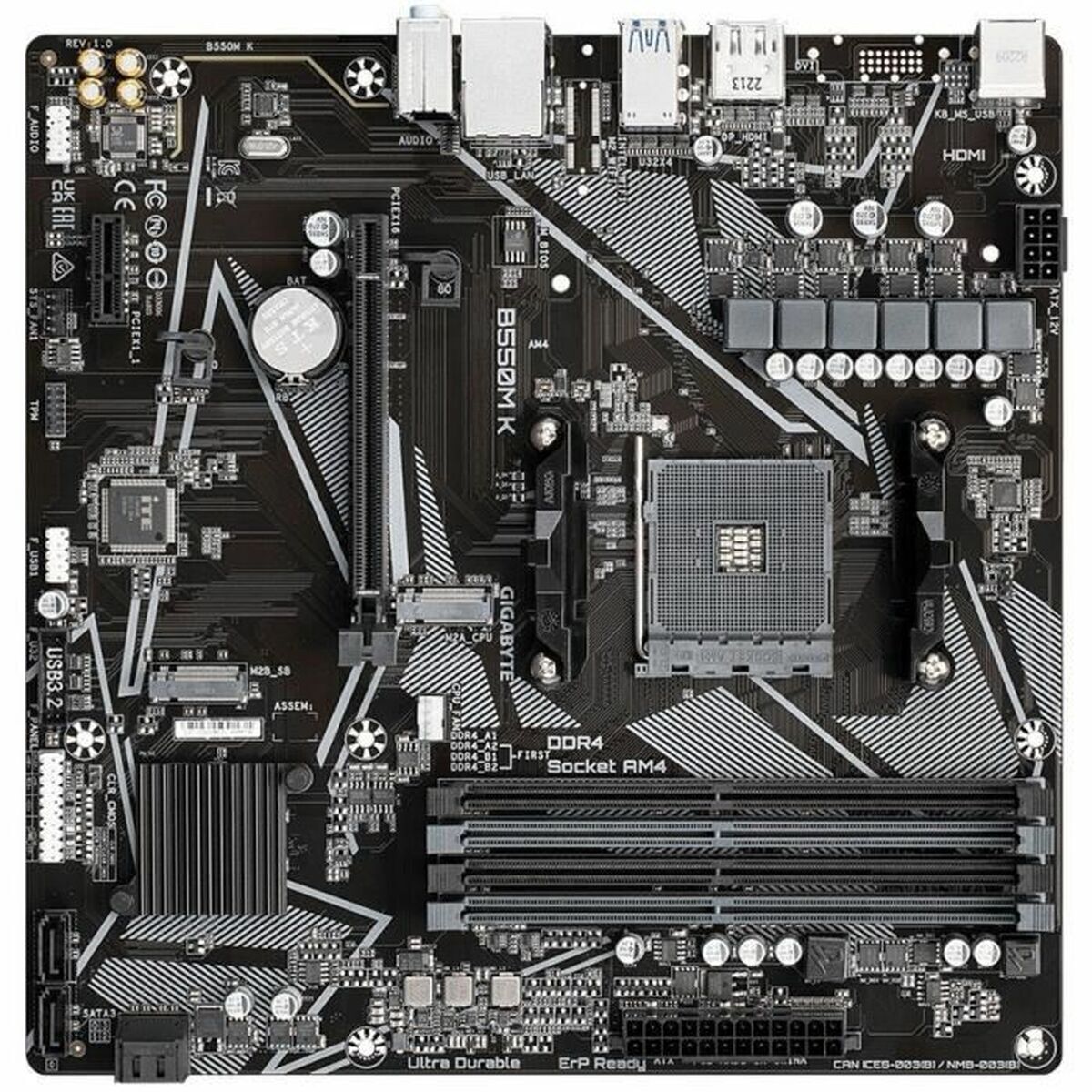

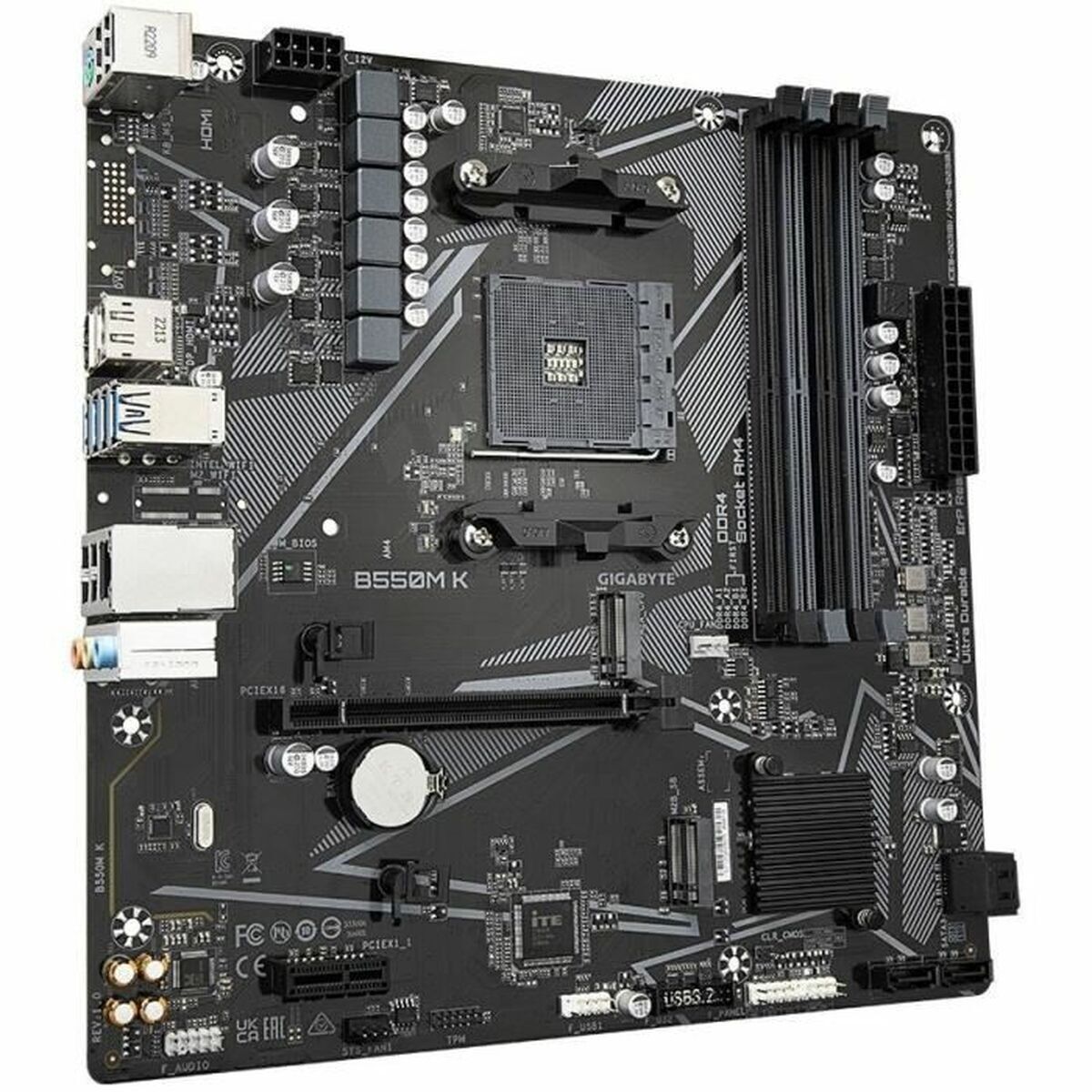

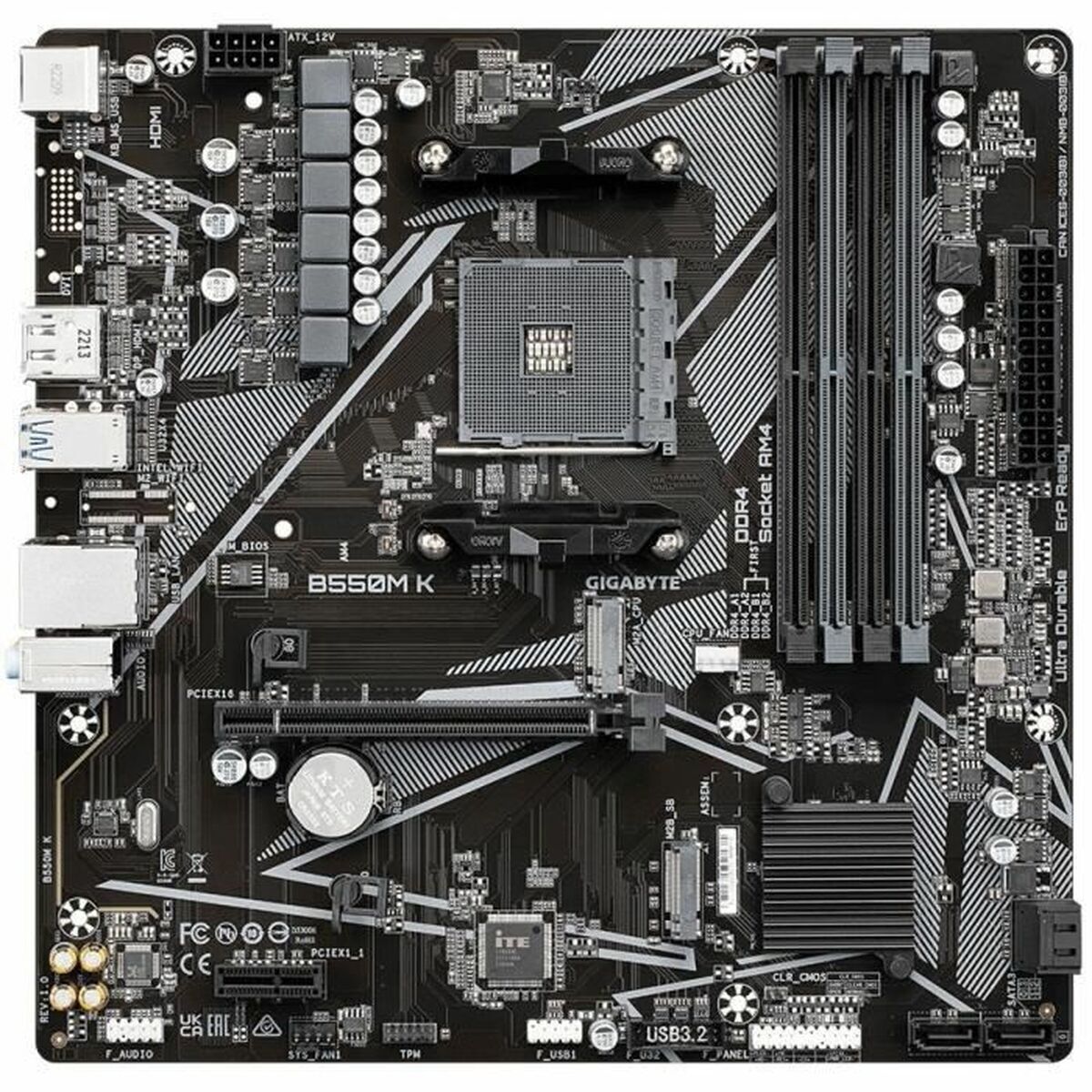

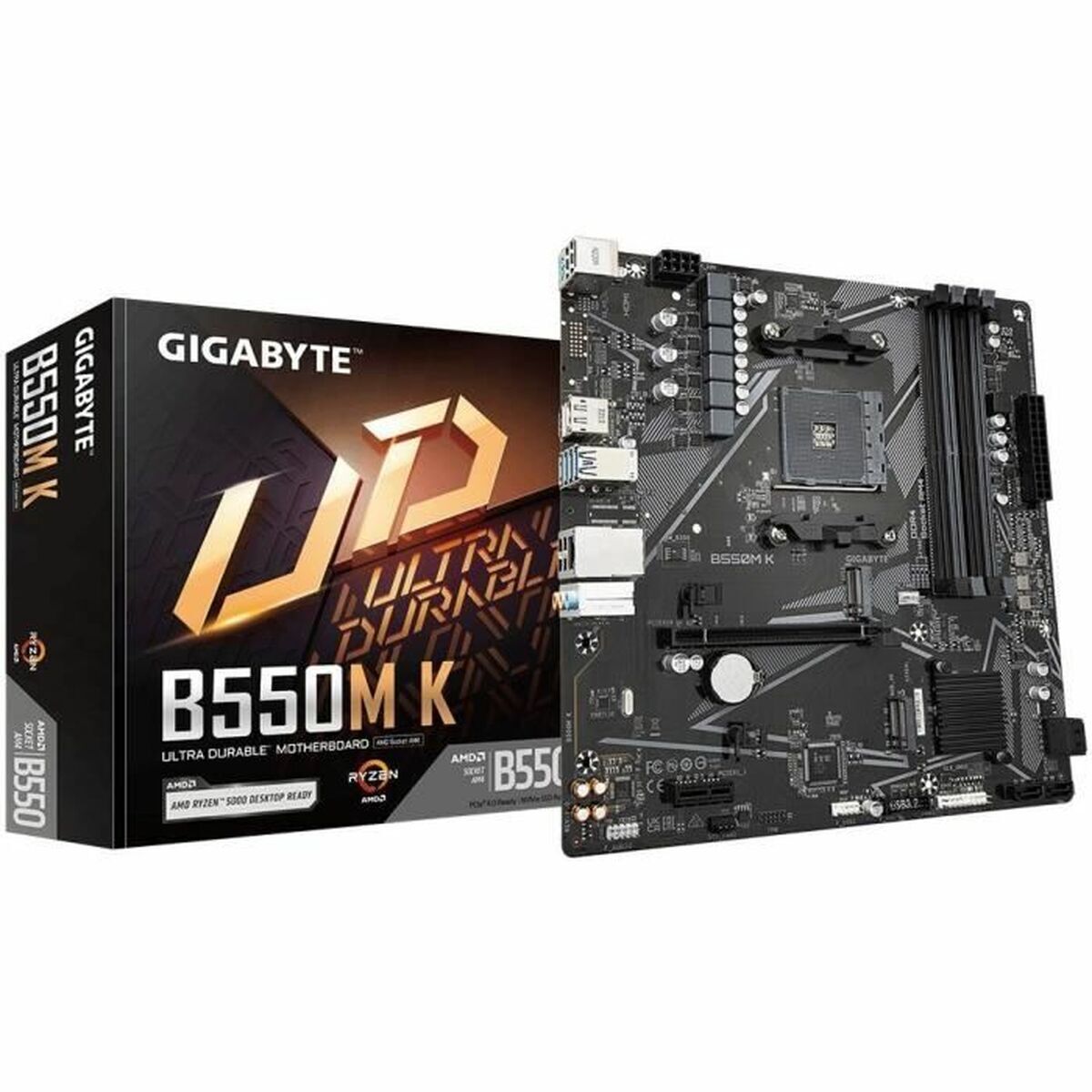

Motherboard Gigabyte B550M K 1.0 AMD B550 AMD AMD AM4

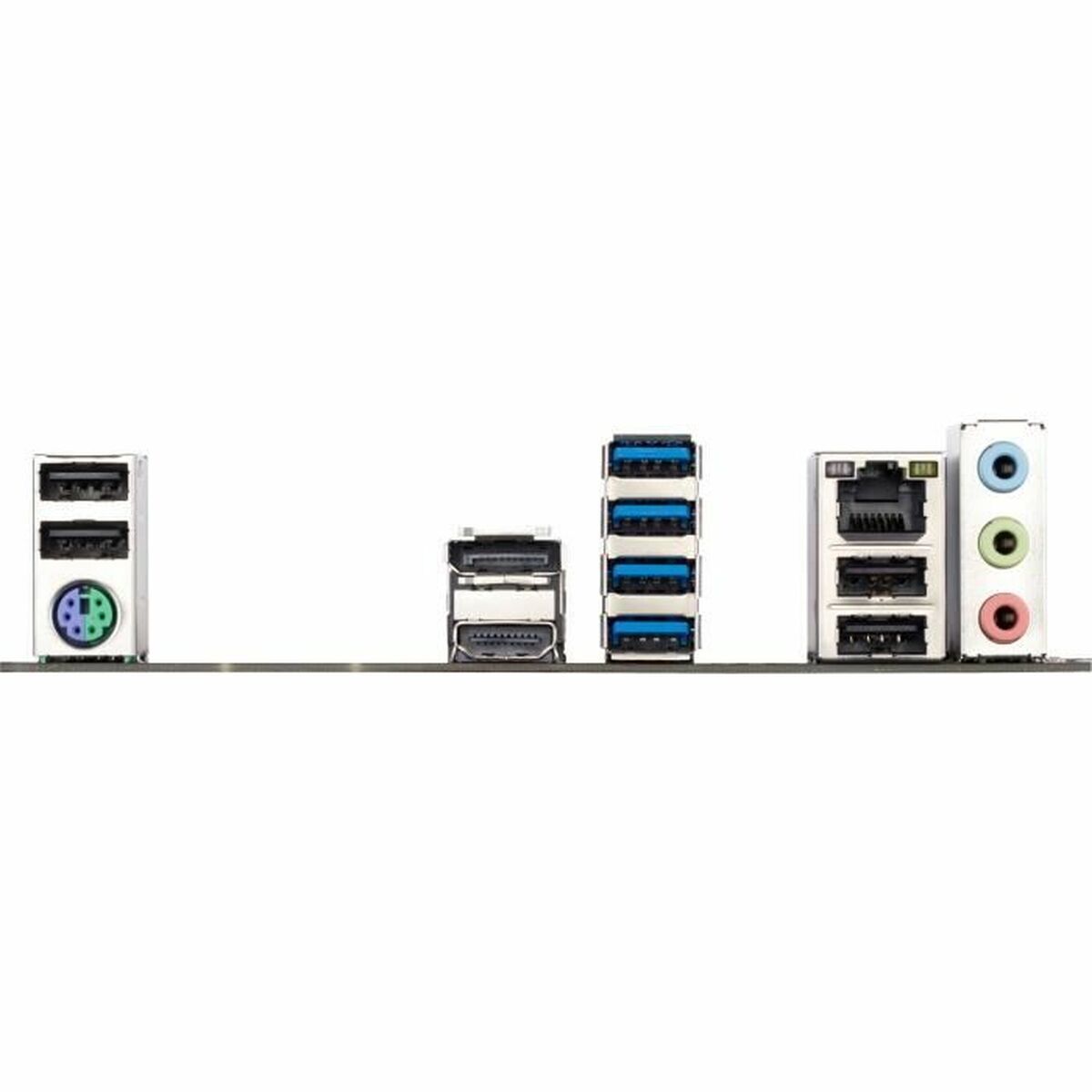

The Gigabyte B550M K 1.0 motherboard is designed for systems based on AMD Ryzen processors with AM4 socket , offering a solid, upgradeable platform for compact desktop PCs thanks to its MicroATX form factor (244 x 244 mm) . It features the AMD B550 chipset , which enables the use of PCI Express 4.0 lanes with compatible CPUs, boosting performance for latest-generation graphics cards and NVMe drives. It supports DDR4-SDRAM memory in DIMM slots with a maximum capacity of 128 GB , suitable for demanding tasks such as advanced productivity, editing or heavy multitasking. For storage, it includes 2 M.2 slots and 4 SATA ports , compatible with SSD and HDD , plus RAID 0/1/10 support to optimize speed or data redundancy. For networking, the board provides Gigabit Ethernet (Realtek 8111H) via an RJ45 port, ensuring a stable connection for home or professional use. Graphics are handled by an integrated graphics adapter dependent on the CPU and HDMI 2.1 and DisplayPort outputs, supporting resolutions up to 5120 x 2880 pixels and compatible with DirectX 12.0 , allowing the use of high-resolution monitors without a dedicated graphics card in basic setups. The rear panel and internal headers include USB 2.0 and up to 4 USB 3.2 Gen 1 ports for peripherals and external devices, plus a combined PS/2 port for keyboard or mouse, and microphone and audio connectors. Audio is managed by the Realtek ALC897 codec with 7.1-channel high-definition sound, suitable for multimedia and gaming systems. The board uses a UEFI BIOS for clear system configuration, is optimized for Windows and comes with essentials such as screws and a CR2032 lithium battery for BIOS memory. Overall, this Gigabyte B550 MicroATX motherboard offers a balanced platform ready for modern desktop PC builds. Type: Motherboard ATX UEFI Connections: Ethernet LAN HDMI PS/2 RJ45 Jack 3.5 mm DisplayPort SATA PCI Express 3.0 USB 3.2 M.2 USB 2.0 HDMI x 1 Microphone USB 2.0 x 4 SATA x 4 PS/2 x 1 M.2 x 2 HDMI 2.1 x 1 DIMM 4 x USB 3.2 Gen 1 (3.1 Gen 1) DisplayPort x 1 RJ45 x 1 Depth: 244 mm Width: 244 mm Colour: Bronze Brown Speed: 4400 MHz 2133 MHz 2400 MHz 2933 MHz 3200 MHz 3400 MHz 3600 MHz 4000 MHz 3733 MHz 4266 MHz 4600 MHz 3466 MHZ 2667 mhz 3866 mhz 4133 mhz 4733 MHZ Chipset: AMD AM4 AMD B550 AMD Memory Type: DDR4 SDRAM DDR4 Channels: 7.1 Power supply: ATX Compatible: Windows 10 HDCP Windows 11 raid 0 raid 1 Raid 10 AMD Ryzen 5 DDR4-SDRAM HDD/SSD PC USB 2.0: 4 Connectors: SATA x 4 Form factor: mATX MicroATX Resolution (px): 5120 x 2880 px Maximum RAM Memory: 128 GB Connectivity: REALTEK RTL8111H Ethernet LAN Realtek 8111H Height: 3,5 cm Processor: AMD Otros: DisplayPort Approx. dimensions: 27 x 6 x 27 cm Platform: Windows Internal Memory: 64 GB Interface: Gigabit Ethernet DirectX 12.0 Battery: CR2032 Memory: 128 MB Number of memory slots: 4 Batteries included: Yes Speakers: 7.1 Includes: Screws Socket: AMD AM4 Not included: WiFi Sound: Realtek ALC897 Characteristics: Built-in graphics adapter Battery type: Litio Ion Processor Family: AMD
