TP-Link

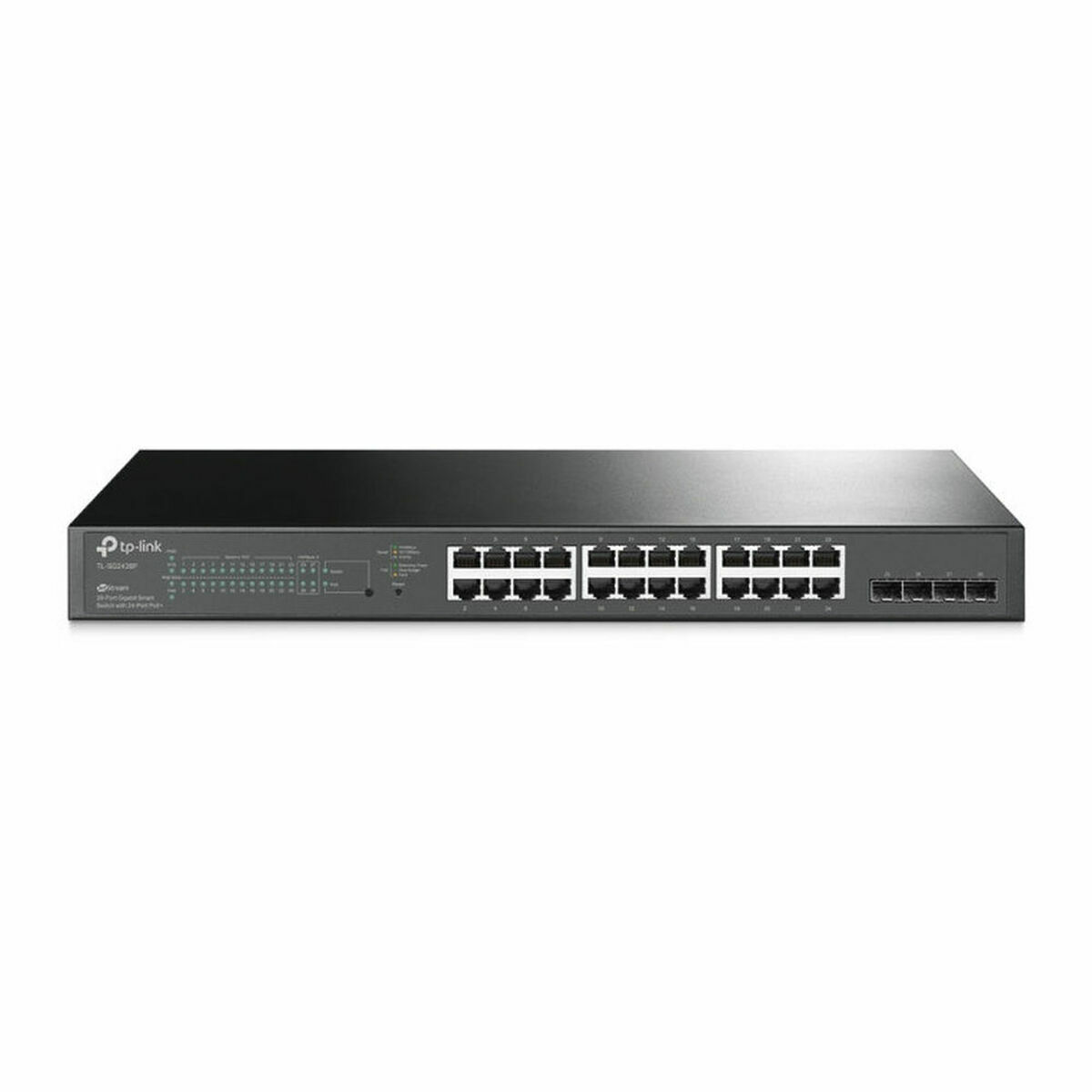

The TL-SG2428P from TP-Link is a high-performance managed switch designed for business environments requiring reliable and versatile connectivity. This device offers a total of 28 ports , of which 24 are Gigabit Ethernet RJ45 ports (10/100/1000 Mbps) supporting PoE+ (Power over Ethernet) , allowing connected devices like IP cameras or VoIP phones to be powered directly from the switch. It also includes 4 SFP ports for fiber optic links, providing long-distance connections with high stability and speed. Its switching capacity reaches 56 Gbit/s , enabling efficient network traffic management even in high-demand environments. It features a MAC address table with 8000 entries , facilitating advanced traffic management and segmentation in complex networks. This model complies with key network standards such as IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x , and 802.3ab , integrating security protocols, quality of service (QoS), and advanced management to ensure stable and secure operation. The switch is rack-mountable, optimizing integration in data centers or communication cabinets, and has a robust design with an approximate weight of 1.5 kg and a black finish. Its power consumption is around 30 W , which combined with its PoE+ capability, offers a balance between power and efficiency. In short, the TP-Link TL-SG2428P is a solid solution for corporate networks needing fast, reliable, and flexible connectivity with support for powering devices via network cable. Ports: 24 28 Ventilator: x 2 2 Approx. dimensions: 44 x 22 x 4,4 cm Connections: RJ45 x 24 SFP x 4 Ethernet LAN Recommended use: Rack Cabinet Product with plug: Yes Type of plug: Plug EU Type: Switch Colour: Black Weight: 1,5 Kg Holder: Multi-support Power: 30 W 250 W Voltage: 230 V 100 - 240 V Power supply: CA cable Iincluded Number of slots: 4 Certificate: CE, FCC, RoHS AC input frequency: 50-60 Hz Width: 44 cm Working range for humidity: 10 % - 90 % Form factor: 1U Approx. temperature: -40º / 70º Includes: User manual Safety: IGMP Realize More Possibilities with Omada JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+Software Defined Networking (SDN) with Cloud AccessOmada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Quality of Service (QoS) support: Y Web-based management: Y ARP inspection: Y System event log: Y Basic switching RJ-45 Ethernet ports quantity: 24 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Fiber ports quantity: 4 Fiber optic connector: SFP Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z 10G support: N Copper ethernet cabling technology: 10BASE-T,10BASE-TX Cable types supported: Cat3,Cat4,Cat5,Cat5e Port mirroring: Y Flow control support: Y Broadcast storm control: Y Rate limiting: Y Auto MDI/MDI-X: Y Spanning tree protocol: Y Auto-negotiation: Y VLAN support: Y Virtual LAN features: MAC address-based VLAN,Protocol-based VLAN,Voice VLAN Number of VLANs: 4000 Fiber ethernet cabling technology: 1000BASE-X MAC address table: 8000 entries Switching capacity: 56 Gbit/s Forwarding rate: 41.7 Mpps Number of queues: 8 Jumbo frames support: Y Jumbo frames: 9000 DHCP features: DHCP relay,DHCP server,DHCP snooping,DHCPv6 client Access Control List (ACL): Y IGMP snooping: Y Security algorithms: HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS Loop protection: Y BPDU filtering/protection: Y IP-MAC-Port binding: Y Authentication type: RADIUS Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR) Multicast support: Y Rack mounting: Y Product colour: Black Number of fans: 2 fan(s) Certification: CE, FCC, RoHS Firmware upgradeable: Y Power consumption (max): 308.6 W Power over Ethernet (PoE): Y Power over Ethernet (PoE) ports quantity: 24 Operating temperature (T-T): 0 - 50 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 1052.94 BTU/h Width: 440 mm Depth: 220 mm Height: 44 mm Cables included: AC User guide: Y Rack mount kit: Y

Colour: Black Depth: 220 mm Width: 440 mm 44 cm Ventilator: x 2 2 Ports: 24 28 Approx. dimensions: 44 x 22 x 4,4 cm 44 x 44 x 22 cm Connections: RJ45 x 24 SFP x 4 Ethernet LAN Recommended use: Rack Cabinet Product with plug: Yes Type of plug: Plug EU Type: Switch Certificate: RoHS CE FCC CE, FCC, RoHS Includes: User manual AC input voltage: 100-240 V Weight: 1,5 Kg Holder: Multi-support Voltage: 230 V Power supply: CA cable Working range for humidity: 10 % - 90 % Approx. temperature: -40º / 70º Safety: IGMP

The TP-Link TL-SG3210 managed switch is an advanced solution for corporate networks requiring efficient management and high performance. This managed L2 switch features 8 Gigabit Ethernet RJ-45 ports that provide fast and stable connections at 10/100/1000 Mbps speeds, ideal for intensive data transmission and maintaining quality of service. It also includes 2 SFP slots for fiber optic connections, allowing network expansion with long-distance or higher-capacity links. With a total switching capacity of 20 Gbit/s and a MAC address table supporting up to 8000 entries, the TL-SG3210 is designed to handle high traffic density and ensure efficient addressing in demanding environments. Its support for network standards such as IEEE 802.1p, 802.1Q, 802.1s, 802.1v, 802.1w, and 802.1x guarantees compatibility with advanced QoS, VLAN, link aggregation, and security features, enabling flexible and secure network management. This device supports rack mounting for easy integration into professional infrastructures and includes LED indicators to monitor network and port status instantly. Built with high-quality materials, its casing combines black and grey elements and is made of durable plastic, providing robustness and a sober look suitable for corporate environments. Although Wi-Fi connectivity is mentioned in its features, its main function focuses on wired Ethernet connectivity, making it optimal for ensuring stable and fast connections in offices, data centers, and small businesses. The TP-Link TL-SG3210 also supports Power over Ethernet (PoE), increasing its versatility to connect devices like IP cameras or VoIP phones without separate power sources. Overall, this switch combines advanced management capabilities with robust and flexible hardware, positioning it as a reliable choice to optimize performance and security in professional network infrastructures. Type: Cupboard Switch Product with plug: Yes AC input voltage: 100-240 V Standard: IEEE 802.1p Class of Service (CoS) prioritization Speed: 1 Gbps Length: 20 cm Characteristics: LED indicator Colour: Black Connections: rj45 x 8 Type of plug: Plug EU

Colour: Black Connectivity: 2,5 Gigabit Ethernet Approx. dimensions: 44 x 44 x 8 cm Speed: 10/100/1000/2500 Mbps Length: 18 cm Form factor: 1U Certificate: FCC CE RoHS CE, FCC, RoHS Width: 44 cm Connections: rj45 x 8 USB Characteristics: LED indicator Data protection/Password Ports: 2 8 Feeding dish included: Yes AC input voltage: 100-240 V Product with plug: Yes Type of plug: Plug EU Type: Switch Material: Plastic Holder: Multi-support Voltage: 220 V 100 - 240 V Ventilator: 2 Power supply: CA cable Iincluded Number of slots: 2 AC input frequency: 50-60 Hz Working range for humidity: 10 % - 90 % Approx. temperature: -40º / 70º Safety: IGMP

The TL-SG3428 switch from TP-Link is a Layer 2 managed device designed for business networks requiring high speed and flexible connectivity. It features 24 RJ45 Gigabit Ethernet ports (10/100/1000 Mbps) and 4 Gigabit SFP slots , allowing fiber optic links for long-distance connections or link aggregation, offering a total switching capacity of 56 Gbit/s . Its MAC table with 8000 entries enables efficient address management and improves performance in large networks. The TL-SG3428 supports multiple IEEE standards such as 802.1Q for tagged VLANs, 802.1p for Quality of Service (QoS), 802.1x for network portal authentication, and redundancy protocols like 802.1w (RSTP) and 802.1s (MSTP) , ensuring a robust, loop-free network topology. Its firmware offers static routing , strong security features, and support for QoS on layers L2, L3, and L4 , enabling prioritization of critical traffic and overall performance optimization. Additionally, it integrates the Omada SDN platform for centralized management, facilitating remote administration and unified configuration in complex environments. The device includes dual console ports (RJ-45 and Micro-USB) and can be rack-mounted in a compact 1U form factor. Its black construction and approximate weight of 2.5 kg make it suitable for professional deployments in data centers or telecom cabinets. The power supply supports 220 V input, and the durable plastic design ensures longevity. Overall, the TP-Link TL-SG3428 is a versatile and efficient solution for corporate networks requiring high simultaneous connection capacity, advanced security, and centralized management, positioning it as a reliable device for medium to large infrastructures. Ports: 4 24 Speed: 10/100/1000 Mbps Connections: SFP x 4 Power supply: Electric Network Approx. dimensions: 44 x 18 x 4,4 cm Voltage: 100-240 V Type of plug: Plug EU Product with plug: Yes Type: Switch Colour: Black AC input voltage: 100-240 V Convenient Gigabit Switch for a Complete Omada Network JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots Software-Defined Networking (SDN) with Cloud Access Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. Abundant L2 and L2+ Features A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. Enterprise Level Management Features Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events. Switch type: Managed Switch layer: L2 Quality of Service (QoS) support: Y Web-based management: Y Cloud-managed: Y ARP inspection: Y Configuring Location Settings (CLI): Y System event log: Y MIB support: Yes Basic switching RJ-45 Ethernet ports quantity: 24 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) SFP module slots quantity: 4 Console port: RJ-45/Micro-USB Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3x 10G support: N Port mirroring: Y Policy-based routing: Y Flow control support: Y Link aggregation: Y Broadcast storm control: Y Rate limiting: Y Spanning tree protocol: Y Head-of-line (HOL) blocking: Y Ethernet LAN data rates: 10,100,1000 Mbit/s Active link detection: Y VLAN support: Y MAC address table: 8000 entries Switching capacity: 56 Gbit/s Forwarding rate: 41.66 Mpps Static route: Y Number of static routes: 48 Jumbo frames support: Y DHCP features: DHCP snooping IGMP snooping: Y IGMP proxy: Y MAC address filtering: Y Loop protection: Y Authentication: MAC-based authentication, Port-based authentication Multicast support: Y Rack mounting: Y Form factor: 1U Product colour: Black LED indicators: Y Power supply included: N AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power consumption (max): 19.22 W Power over Ethernet (PoE): N Operating temperature (T-T): 0 - 45 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 65.58 BTU/h Width: 440 mm Depth: 180 mm Height: 44 mm Cables included: LAN (RJ-45) Quick start guide: Y

Connections: RJ45 SFP x 4 Form factor: 1U Type of plug: Plug EU Product with plug: Yes Type: Switch Colour: Black Holder: Multi-support Capacity: 4 Kg Power supply: CA cable Iincluded Number of slots: 4 Ports: 24 Characteristics: LED in operation indicator Data protection/Password Width: 44 cm Working range for humidity: 10 % - 90 % Speed: 10/100/1000/10000 Mbps Approx. temperature: -40º / 70º Safety: IGMP
