TP-Link

The managed switch TL-SG3428XMP from TP-Link is a professional solution designed for network environments requiring high capacity and flexibility. This model belongs to the JetStream™ family and offers 24 Gigabit Ethernet RJ-45 ports for high-speed LAN connections, along with 4 10GE SFP+ ports that enable fiber optic links up to 10 Gbps, ideal for uplinks or high-demand connections. As a layer 2+ managed switch, it supports network standards such as IEEE 802.1s and IEEE 802.1w, ensuring quality of service, resilience, and advanced traffic control protocols essential in complex enterprise networks. The switching capacity is 128 Gbps , guaranteeing smooth handling of large data volumes without bottlenecks. It also features a MAC address table capable of storing up to 16,000 entries , facilitating efficient network management and improved segmentation. It includes support for PoE (Power over Ethernet) , allowing compatible devices to be powered directly via the network cable, simplifying installation and reducing cabling. Its black design and 33 cm rack-mount format make it suitable for data centers and professional communication rooms. It operates within a voltage range of 100 - 240 V , ensuring compatibility across multiple locations and the robustness needed for intensive, continuous use. It also offers dual console ports (RJ-45 and Micro-USB) for direct and advanced management. This device is ideal for companies and organizations needing a powerful, secure, and scalable network infrastructure capable of supporting critical applications and high data transfer performance in a controlled environment. The TP-Link TL-SG3428XMP represents an excellent combination of versatility, performance, and professional standards for gigabit networks with PoE capabilities and next-generation 10G support. Colour: Black Feeding dish included: Yes Width: 44 cm Form factor: 1U Product with plug: Yes Type of plug: Plug EU Type: Switch Ports: 24 AC input voltage: 100-240 V Holder: Multi-support Length: 33 cm Voltage: 220 V 100 - 240 V Ventilator: 2 Number of slots: 4 Connections: Ethernet LAN RJ45 x 24 Characteristics: LED in operation indicator AC input frequency: 50-60 Hz Speed: 10/100/1000 Mbps Working range for humidity: 10 % - 90 % Power supply: Iincluded Approx. temperature: -40º / 70º Safety: IGMP

Colour: Black Frequency: 50-60 Hz Memory Type: DRAM Form factor: 1U Width: 44 cm Hard Drive: 256 MB Voltage: 100-240 V 100 - 240 V Connections: PoE x 1 RJ45 x 24 Feeding dish included: Yes Ventilator: 3 Power supply: Cable CA cable Iincluded Product with plug: Yes Type of plug: Plug EU Type: Switch Internal Memory: 256 MB 32 GB Holder: Multi-support Length: 33 cm Ports: 24 Characteristics: LED in operation indicator Data protection/Password AC input frequency: 50-60 Hz Working range for humidity: 10 % - 90 % Approx. temperature: -40º / 70º Safety: IGMP Units: 3 Units

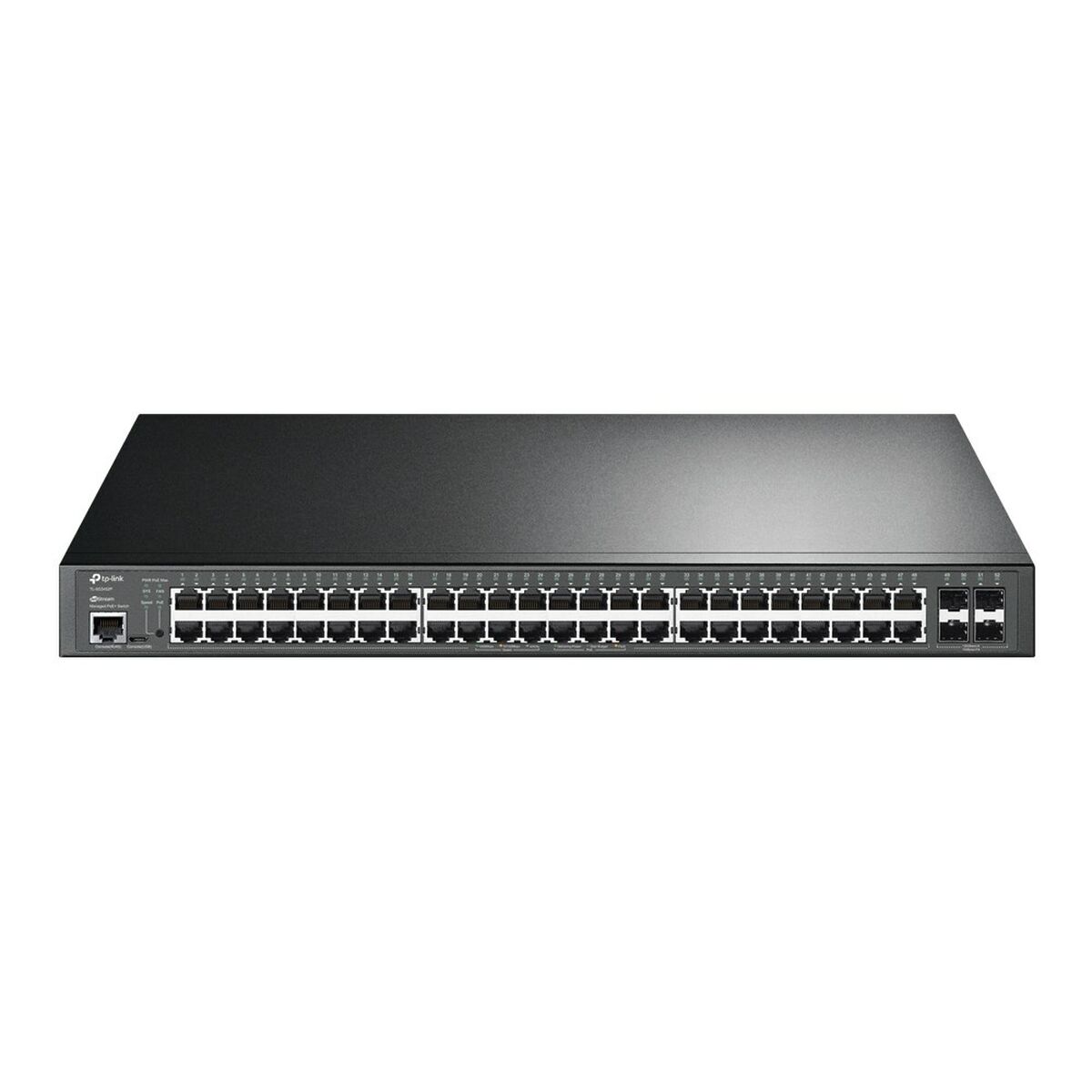

The TL-SG3452 switch from TP-Link is a managed Layer 2 (L2+) switch designed for enterprise network infrastructures requiring high capacity and reliability. It features 48 Gigabit Ethernet RJ-45 ports that provide fast and stable LAN connectivity, complemented by 4 SFP slots for fiber optic connections allowing high-speed, long-distance network expansions. Its sturdy black metal casing enables standard rack mounting, ensuring durability and optimal heat dissipation. This device is equipped with 256 MB of memory and a 16,000-entry MAC table , ensuring efficient traffic handling and the capacity to manage multiple devices simultaneously. The switching capacity is 104 Gbit/s , delivering high performance for environments demanding fast data transfer and low latency. It also includes RJ-45 and Micro-USB console ports for easy administration and advanced configuration via the Omada SDN Controller system, which offers centralized control and flexible network management. Compatible with IEEE 802.1D, 802.1p, 802.1s, and 802.1w standards, it supports VLAN protocols, quality of service (QoS), and rapid spanning tree for switching. Its multi-support design and included installation guide allow straightforward deployment in diverse environments. Overall, the TL-SG3452 combines high performance, easy management, and versatile connectivity, making it a reliable solution for enterprise networks requiring efficiency and scalability. Colour: Black Approx. dimensions: 44 x 44 x 22 cm Product with plug: Yes Form factor: 1U Certificate: FCC CE RoHS Width: 44 cm Height: 4,4 cm Speed: 10/100/1000 Mbps AC input voltage: 100-240 V Standard: IEEE 802.1p Class of Service (CoS) prioritization Connections: RJ45 x 48 Feeding dish included: Yes Length: 22 cm Internal Memory: 256 MB Type of plug: Plug EU Type: Switch Convenient Gigabit Switchfor a Complete Omada Network JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Reliable Gigabit Connections48× Gigabit RJ45 Ports and4× Gigabit SFP Ports Centralized Cloud ManagementSDN Solutions Integration fora Highly Efficient Network Advanced L2+ FeaturesL2/L3/L4 QoS, ACL,Static Routing and More Abundant Secure StrategiesLAN Area Investment Protection Software Defined Networking (SDN) with Cloud AccessOmada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure NetworkingSecurity features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Enterprise Level FeaturesA complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.Advanced QoSVoice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.ISP Features**QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links.IPv6 SupportIPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. Switch type: Managed Switch layer: L2 Quality of Service (QoS) support: Y Web-based management: Y Cloud-managed: Y Configuring Location Settings (CLI): Y System event log: Y Basic switching RJ-45 Ethernet ports quantity: 48 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) SFP module slots quantity: 4 Console port: RJ-45/Micro-USB Networking standards: IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w 10G support: N Port mirroring: Y IP routing: Y Policy-based routing: Y Flow control support: Y Link aggregation: Y Broadcast storm control: Y Spanning tree protocol: Y Ethernet LAN data rates: 10,100,1000 Mbit/s VLAN support: Y MAC address table: 16000 entries Switching capacity: 104 Gbit/s Forwarding rate: 77.4 Mpps Static route: Y Jumbo frames support: Y DHCP features: DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 snooping IGMP snooping: Y MAC address filtering: Y Authentication: MAC-based authentication, Port-based authentication Multicast support: Y Rack mounting: Y Product colour: Black Certification: CE, FCC, RoHS AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power over Ethernet (PoE): N Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 111.91 BTU/h Width: 440 mm Depth: 220 mm Height: 44 mm Cables included: AC Quick start guide: Y Rack mount kit: Y

The TL-SG3452P from TP-Link is a Layer 2+ managed switch designed for business environments requiring high performance and network flexibility. This device features a total of 52 gigabit Ethernet ports , including 48 RJ45 ports with PoE+ support to power compatible devices directly via the network cable, simplifying the installation of cameras, wireless access points, and VoIP phones without extra power outlets. It also includes 2 additional ports for basic connections and 4 ports with variable speed settings , ensuring versatility for connecting various equipment. It incorporates advanced switching technologies such as link aggregation (IEEE 802.3ad), quality of service (IEEE 802.1p), and multiple management and redundancy protocols (IEEE 802.1D, IEEE 802.1s, IEEE 802.1w), optimizing network traffic and maintaining stability and security in complex infrastructures. Its switching capacity reaches 104 Gbit/s , supporting a MAC address table of up to 16,000 entries , ideal for networks with multiple devices and high data transfer demands. The unit is rack-mountable and features a compact, robust black design, approximately 33 cm in size, facilitating integration into server rooms or data centers. It includes LED indicators for easy port status monitoring and a quick installation guide for straightforward setup. Its power supply supports up to 30 W per port in PoE+ mode, providing sufficient power for most compatible devices. Additionally, it allows centralized management via the Omada SDN controller, enabling remote configuration, monitoring, and network administration. This model offers a balanced solution in capacity, efficiency, and control for corporate networks requiring robustness, flexibility, and quality connections. Colour: Black Product with plug: Yes Includes: User manual Length: 33 cm Form factor: 1U Width: 44 cm Approx. dimensions: 44 x 44 x 39 cm Speed: 10/100/1000 Mbps AC input voltage: 100-240 V Standard: IEEE 802.1p Class of Service (CoS) prioritization Connections: RJ45 x 48 Ethernet LAN Feeding dish included: Yes Ports: 48 4 2 Characteristics: LED indicator Installation guide included LED in operation indicator Data protection/Password Type of plug: Plug EU Type: Switch Holder: Multi-support Power: 30 W Voltage: 220 V 100 - 240 V Ventilator: 3 Power supply: CA cable Iincluded Number of slots: 4 AC input frequency: 50-60 Hz Working range for humidity: 10 % - 90 % Approx. temperature: -40º / 70º Safety: IGMP

Width: 44 cm Product with plug: Yes Type of plug: Plug EU Type: Switch Colour: Black Country/Region of manufacture: Spain Material: Plastic Connections: Mini USB Ethernet LAN RJ45 x 48 Holder: Multi-support Power: 30 W Length: 33 cm Voltage: 220 V 100 - 240 V Number of slots: 4 AC input frequency: 50-60 Hz Speed: 10/100/1000 Mbps Working range for humidity: 10 % - 90 % Power supply: Iincluded Characteristics: Data protection/Password Approx. temperature: -40º / 70º Safety: IGMP Units: 3 Units

The TP-Link TL-SG3452X managed switch is a high-performance device designed for professional environments requiring a reliable and efficient network. This L2+ switch features 48 RJ45 Gigabit Ethernet ports (10/100/1000 Mbps) , complemented by 4 Gigabit SFP ports and 4 10 Gigabit SFP+ ports , allowing flexible connectivity tailored to the current needs of corporate networks with high bandwidth demands. Its switching capacity reaches 176 Gbit/s , supporting a MAC address table with up to 16,000 entries , ensuring efficient traffic management and stable performance in high data volume environments. It complies with key network standards such as IEEE 802.1D, 802.1Q, 802.1s, 802.1w, and 802.3ad , guaranteeing compatibility and advanced features like VLANs, link aggregation, and rapid spanning tree protocols. The unit includes an RJ45 console port for easier and faster configuration and maintenance, plus LED indicators that simplify monitoring of the device’s status and operation. Its 1U rack design and black finish make it suitable for standard network cabinets, enabling neat and professional installation. Additional micro USB connectivity facilitates administrative tasks or updates. Extra features such as multi-support and an installation guide make this model a complete solution for corporate environments requiring a robust, scalable, and easy-to-manage network infrastructure. Overall, the TP-Link TL-SG3452X offers a balanced combination of capacity, speed, and management, positioning it as a reliable choice for upgrading and optimizing enterprise networks. AC input voltage: 100-240 V Width: 44 cm Certificate: CE FCC RoHS CE & RoHS, FCC Form factor: 1U Depth: 220 mm Product with plug: Yes Approx. dimensions: 44 x 44 x 22 cm Height: 4,4 cm Type: Cupboard Switch Colour: Black Characteristics: LED indicator Length: 22 cm Feeding dish included: Yes Connections: SFP x 4 Micro USB RJ45 x 48 SFP Gigabit x 4 Speed: 1 Gbps 176 Gbps Recommended use: Rack Cabinet Voltage: 100-240 V 50-60 Hz Type of plug: Plug EU
