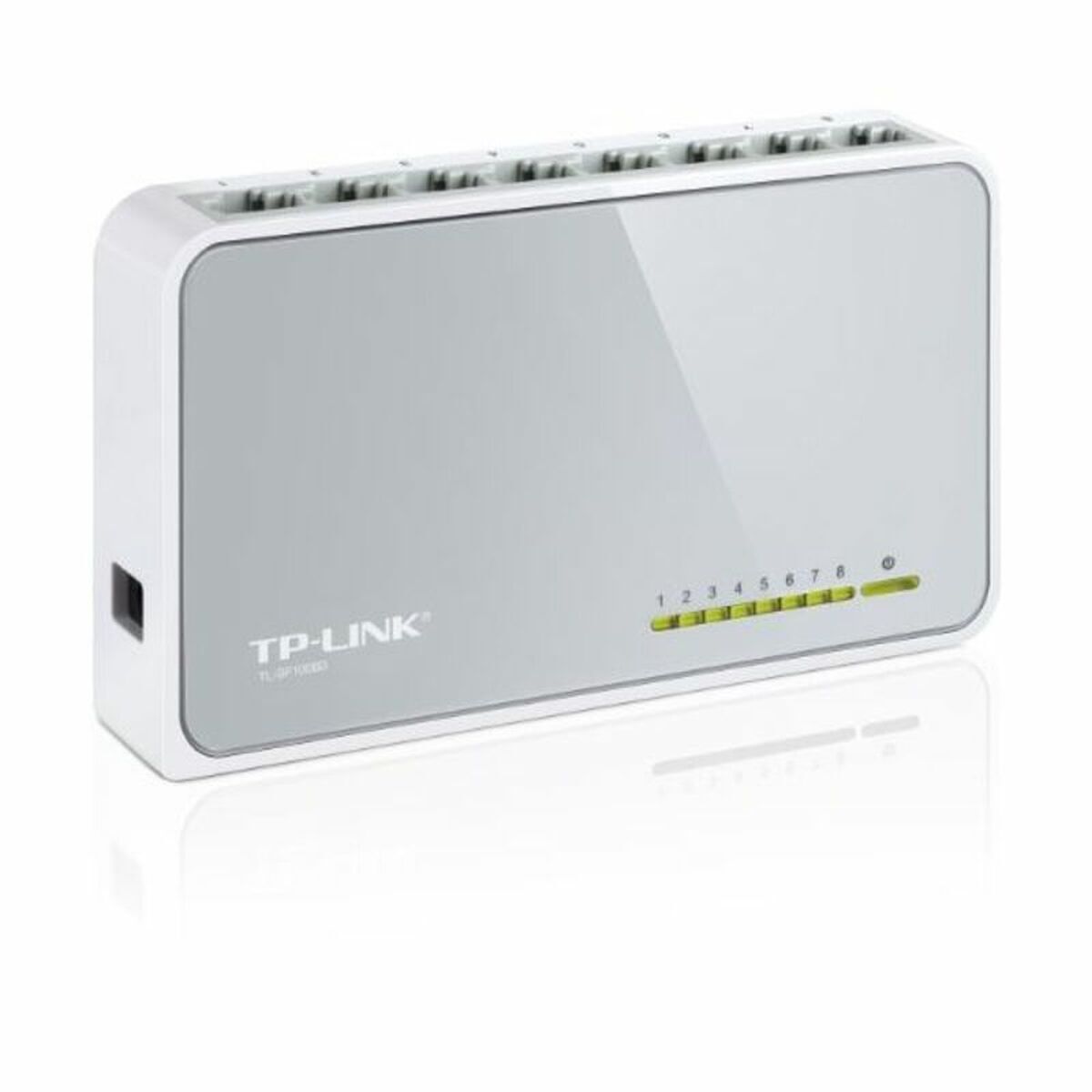

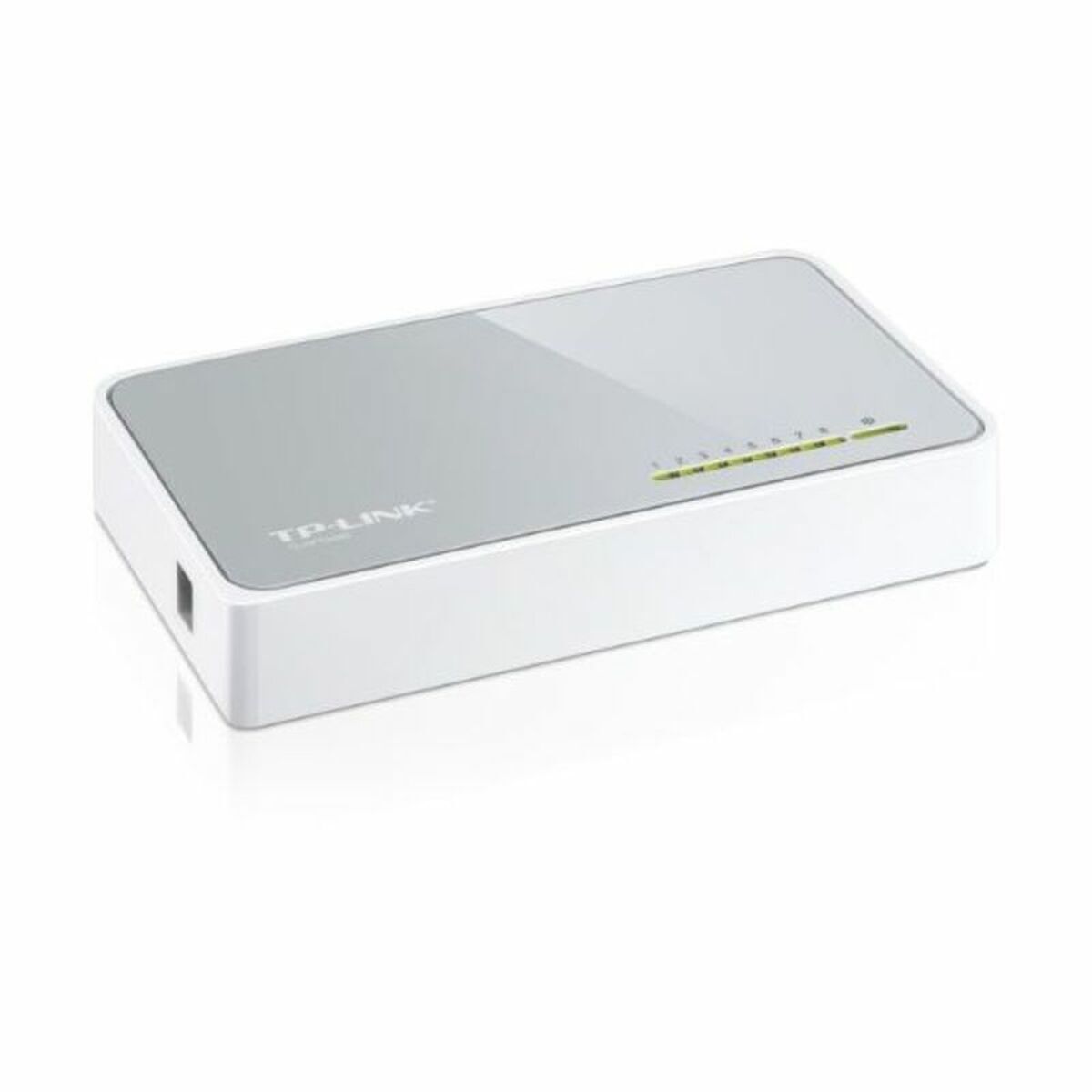

Desktop Switch TP-Link TL-SF1008D

The TP-Link TL-SF1008D desktop switch is an unmanaged switch designed to easily and reliably expand a home or small office network, offering 8 RJ45 Fast Ethernet 10/100 Mbps ports with auto‑negotiation and full duplex support to optimize data flow in both directions. Built in a durable plastic housing with a white finish , it has a compact design of approximately 14 x 8.7 x 2.75 cm and a weight of around 240 g , making it easy to install on a desk or in tight spaces. Each port supports standard network connections via RJ45 connectors , allowing PCs, network printers, NAS devices, set‑top boxes and other Ethernet equipment to be interconnected quickly with no prior configuration. Its 1.6 Gbit/s switching capacity and MAC address table with 1000 entries ensure efficient internal traffic handling, suitable for environments with several active devices at the same time. The device includes LED indicators for power and per‑port activity , allowing you to check connection and power status at a glance. It is powered by an external power adapter (input 100‑240 V, 50‑60 Hz, output 5 V) with a typical consumption of about 2 W , helping to keep energy usage low during continuous operation. It is designed to operate across a wide range of typical indoor temperature and humidity levels, and supports network standards such as IEEE 802.3u and IEEE 802.3x , ensuring interoperability with most current networking equipment. A user manual is included for immediate plug‑and‑play setup, with no extra software or advanced networking knowledge required. Overall, this model is a basic and stable solution to add Ethernet ports in Fast Ethernet networks where simplicity and day‑to‑day reliability are key. Characteristics: LED indicator Plug and play LED in operation indicator Feeding dish included: No Yes Power supply: Electric Network DC Approx. dimensions: 14 x 8,7 x 2,75 cm 13,5 x 12,3 x 7,79 cm Includes: Adapter AC User manual Speed: 100 Mbps 10/100 Mbps 1.6 Gbps Light indicator: LED Certificate: RoHS CE FCC AC input voltage: 100-240 V 100 - 240 V 5 V Type of plug: Plug EU Product with plug: Yes Width: 13,5 cm 140 mm Type: Tablecloth Switch Connections: RJ45 rj45 x 8 Voltage: 100-240 V 5 V 220 V 240 V 100 - 240 V Frequency: 50-60 Hz 50 Hz Depth: 79 mm Colour: White Material: Plastic Memory Type: DDR3 SDRAM Ports: 8 Power: 2 W AC input frequency: 50-60 Hz Weight: 240 g Working range for humidity: 10 % - 90 % Compatible: PC Approx. temperature: -40º / 70º Amperage: 0,6 A Processor Family: Intel Core i5 Intel Nuclei: 1 core What This Product Does The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network. High Performance TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably. TP-Link Green Technology This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled. Easy to Use The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance. Switch type: Unmanaged Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) Fast Ethernet (copper) ports quantity: 8 Power connector: DC-in jack Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3x 10G support: N Copper ethernet cabling technology: 10BASE-T,100BASE-TX Full duplex: Y Flow control support: Y Auto MDI/MDI-X: Y Auto-negotiation: Y MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s Store-and-forward: Y Supported network protocols: CSMA/CD, TCP/IP Rack mounting: N Product colour: White LED indicators: Y Certification: FCC, CE, RoHs AC input voltage: 220 V AC input frequency: 50 Hz Power consumption (max): 2.05 W Power over Ethernet (PoE): N Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 95% Width: 134.5 mm Depth: 79 mm Height: 22.5 mm Package type: Box
